EMC cable gland [EMC-]
$19.00
Tax included.
Shipping calculated at checkout.
在庫: あり
All sizes are out of stock
納期: About a month
- Barcode:
EMC type cable gland
■Features
- By contacting the ring with the shield, it provides shield grounding functionality.
-It meets the IP68 waterproof standard, so there is no impact on internal equipment.
-Because it is a metal type, it has excellent chemical resistance, weather resistance, and impact resistance.
-We offer a wide range of sizes and a wide variety of screw types.

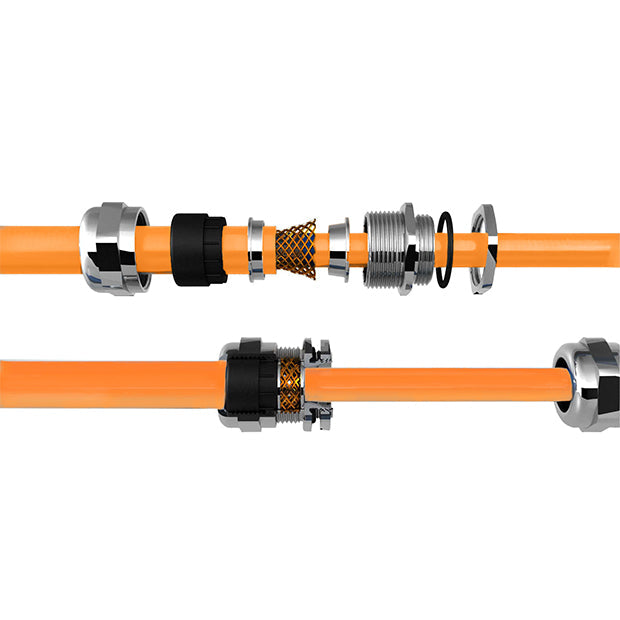

<EMC cable gland structure>
■ Recruitment history
・Electric vehicles, EVs, solar power generation, surveillance cameras, railway signals, etc.
■Sales
・Please contact us .
■ Examples of made-to-order products
Custom sizes are also available.
◆Click here for the catalogue
◆ROHS2 certificate is here
| Material |
Body: Brass, nickel plated Seal, washer: NBR |
| Operating temperature range | -40℃ to 100℃ |
| standard |
CE RoHS REACH |
| color | silver |
| Model | Screw type D1 | Applicable wire | H | GL | Spanner Size |
| M1205BRL-EMC-R | M 12× 1.5 | 2-5 | twenty three | 10 | 17 |
| M1610BRL-EMC-R | M 16× 1.5 | 5-10 | twenty five | 10 | 20 |
| M2014BRL-EMC-R | M 20× 1.5 | 10-14 | 28 | 10 | twenty four |
| M2518BRL-EMC-R | M 25× 1.5 | 13-18 | 30 | 12 | 30 |
| M3221BRL-EMC-R | M 32× 1.5 | 18-21 | 36 | 12 | 34 |
| M4028BRL-EMC-R | M 40× 1.5 | 20-28 | 39 | 15 | 50 |
| M5035BRL-EMC-R | M 50× 1.5 | 30-35.5 | 41 | 15 | 57 |
| Model | Screw type D1 | List price | 1 piece |
| M1205BRL-EMC-R | M 12× 1.5 | 2575 | 2489 |
| M1610BRL-EMC-R | M 16× 1.5 | 2773 | 2681 |
| M2014BRL-EMC-R | M 20× 1.5 | 3466 | 3351 |
| M2518BRL-EMC-R | M 25× 1.5 | 4358 | 4212 |
| M3221BRL-EMC-R | M 32× 1.5 | 6933 | 6702 |
| M4028BRL-EMC-R | M 40× 1.5 | 10980 | 10334 |
| M5035BRL-EMC-R | M 50× 1.5 | 15330 | 14513 |
*Please contact us for the price, lot size, etc. of this product .
