Copper foil shielded tube [ATSX]
Copper foil shielded tube [ATSX]
Copper foil shielded tube [ATSX]

    Copper foil shielded tube [ATSX]

    $20.00 $22.00
    Tax included. Shipping calculated at checkout.
    在庫: あり
    納期: 1～3日以内に出荷
    価格が0円と表示される製品のご購入は弊社までお問い合わせください。
    商品についてお問い合わせはこちら
    • Barcode:

    ↓Select the thumbnail of the item you want to view and you will be taken to the respective data.

    • Materials
    • Specifications
    • size
    • Price List
    Product overview

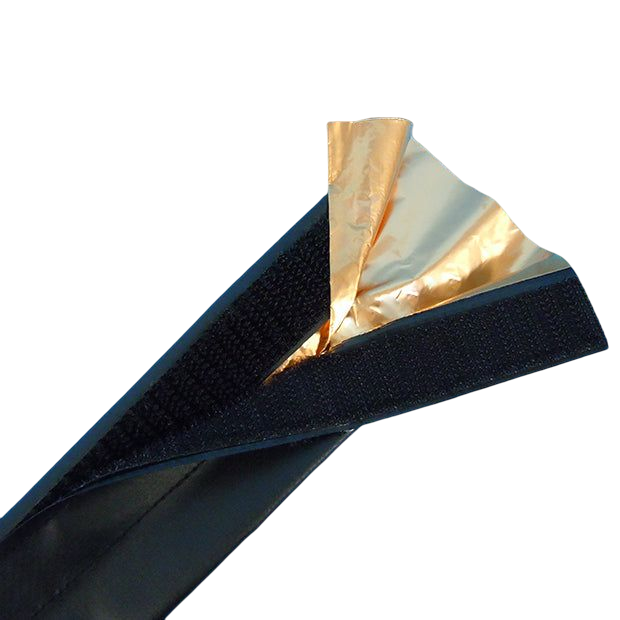

    Velcro type shield tube that can be inserted later

    ■Features
    - Electrical resistance is also about half that of aluminum at 0.04Ω/cm2
    ・Earth installation can be completed in a short time because the copper foil can be easily soldered.
    - It has excellent flexibility and can be used in narrow and tight spaces.
    ・Improved electromagnetic wave shielding effect compared to aluminum shield tube/conductive cloth
    -Special copper sheet provides resistance to unwanted radiation and significantly improves electromagnetic wave shielding effect

    ■ Recruitment history
    - Automobiles, broadcasting equipment, video equipment, inspection equipment, control equipment, machine tools, molding machines, etc.

    Manufacturers Situation before employment Effects on recruitment
    Semiconductor manufacturing equipment manufacturer

    ・From 2015
    It became necessary to separate the signal line and the power line within the device, but due to the space inside the device, it was difficult to separate the two wires.

    		 By wrapping our ATSX around the power cable, we were able to prevent noise from affecting the signal cable.

    *Please contact us for more detailed information on case studies and results.

    ■Sales
    ・This product can be manufactured from 1m.
    ・We can also make custom orders for your desired size and thickness. Please contact us .

    ■ Examples of made-to-order products
    ・Large noise suppression sheet for nuclear power plants


    Download materials

    ◆Click here for the catalogue

    ◆Product selection table can be found here

    ◆ROHS2 certificate can be found here

    ◆ Packaging specifications are here


    Specifications


    Material Polyester cloth PVC sheet
    Special copper foil sheet (0.026mm)
    Fitting: Velcro nylon fiber, polyurethane resin
    Operating temperature range -5℃ to 60℃



    size


    Model number Inner diameter (φ) Width W(mm) Packing unit/roll
    ATSX-10 10 57 25m
    ATSX-15 15 64
    ATSX-20 20 85
    ATSX-25 twenty five 98
    ATSX-30 30 117
    ATSX-40 40 147
    ATSX-50 50 184
    ATSX-70 70 248
    ATSX-100 100 338
    ATSX-150 150 493
    ATSX-200 200 655


    Price List


    Model number Inner diameter Volume 1 List price 1m 5m 10m 1 roll (25m)
    ATSX-10 10mm 25m 2,764 2,616 2,369 1,777 1,382
    ATSX-15 15mm 25m 2,912 2,756 2,496 1,872 1,456
    ATSX-20 20mm 25m 3,046 2,883 2,611 1,958 1,523
    ATSX-25 25mm 25m 3,156 2,987 2,705 2,029 1,578
    ATSX-30 30mm 25m 3,265 3,090 2,798 2,099 1,632
    ATSX-40 40mm 25m 3,467 3,282 2,972 2,229 1,734
    ATSX-50 50mm 25m 3,698 3,500 3,170 2,377 1,849
    ATSX-70 70mm 25m 4,588 4,342 3,932 2,949 2,294
    ATSX-100 100mm 25m 5,120 4,846 4,388 3,291 2,560
    ATSX-150 150mm 25m 6,304 5,966 5,403 4,052 3,152
    ATSX-200 200mm 25m 7,287 6,897 6,246 4,685 3,644

    * All prices are per meter (excluding tax) ⇒How
