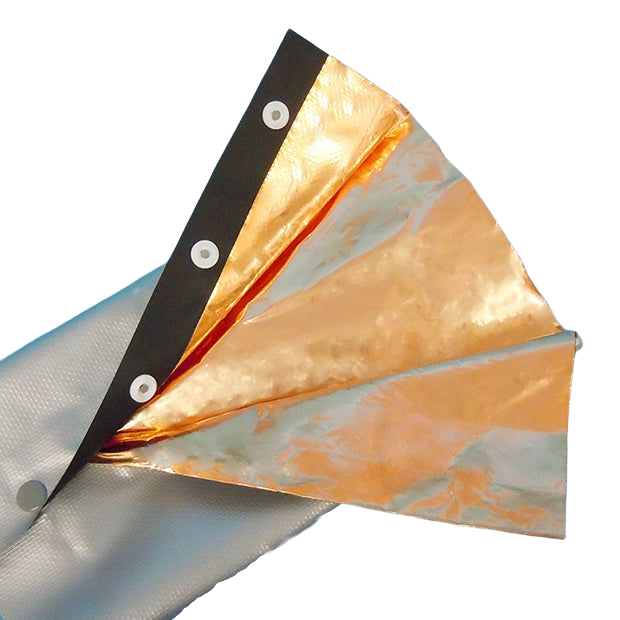

Hook and eye type copper foil shield tube [FKS]

Hook and eye type copper foil shield tube [FKS]

$19.00 $22.00

Tax included. Shipping calculated at checkout.

在庫: あり

納期: About a week

価格が0円と表示される製品のご購入は弊社までお問い合わせください。

商品についてお問い合わせはこちら

Barcode:

↓Select the thumbnail of the item you want to view and you will be taken to the respective data.

Hook and button type cable shield tube

■Features
- Achieves improved electromagnetic wave shielding effect compared to aluminum shielded tubes/conductive cloth.
- The electrical resistance value is also about half that of aluminum at 0.04Ω/cm2.
- Soldering to the copper foil is extremely easy, and earthing can be completed in a short time.
- It has excellent flexibility and can be used in narrow, space-constrained areas.
- It boasts high water resistance and dust resistance, making it ideal for clean rooms in particular.
- You can also specify the color of the outside of the tube to be black or gray.

■ Recruitment history
・For noise suppression
Automobiles, broadcasting equipment, video equipment, audio, inspection equipment, power generation equipment, control equipment, machine tools, molding machines, food factories, confectionery factories, etc.

Manufacturers	Situation before employment	Effects on recruitment
medical device manufacturers	・From 2015 Noise was entering the electrocardiograph signal lines, adversely affecting the screen display. Because the part is visible to the user, it was necessary to use a protective cover in the same gray color as the cable to prevent noise.	Our FKS is reversible so you can change the exterior color, so we made it with a gray cover. The effect was greater than that of other companies' aluminum foils, reducing the noise reception on the affected signal lines and allowing the display to be output without any problems.

Material	Copper foil section: special copper foil sheet
	Seat: PVC sheet with polyester cloth
	Hook and eye button: POM
Operating temperature range	-5 to 60°C
Standard Color	gray

*FKS has the same effect as ATS.

Model number	Inner diameter (φ)	Width W(mm)	Packing unit/roll (m)
FKS-10	10	66	twenty five
FKS-15	15	75
FKS-20	20	92
FKS-25	twenty five	105
FKS-30	30	120
FKS-40	40	150
FKS-50	50	182
FKS-70	70	245
FKS-100	100	338
FKS-150	150	500

Unit: mm

Model number	Inner diameter ±3	Volume 1	List price	1m	5m	10m	25m (Volume 1)
FKS-10	10mm	25m	2,771	2,375	2,177	1,979	1,267
FKS-15	15mm	25m	2,963	2,539	2,328	2,116	1,354
FKS-20	20mm	25m	3,130	2,683	2,459	2,236	1,431
FKS-25	25mm	25m	3,255	2,790	2,558	2,325	1,488
FKS-30	30mm	25m	3,404	2,918	2,675	2,431	1,556
FKS-40	40mm	25m	3,657	3,135	2,873	2,612	1,672
FKS-50	50mm	25m	3,917	3,357	3,078	2,798	1,791
FKS-70	70mm	25m	5,064	4,341	3,979	3,617	2,315
FKS-100	100mm	25m	5,772	4,948	4,535	4,123	2,639
FKS-150	150mm	25m	7,887	6,760	6,197	5,633	3,605
