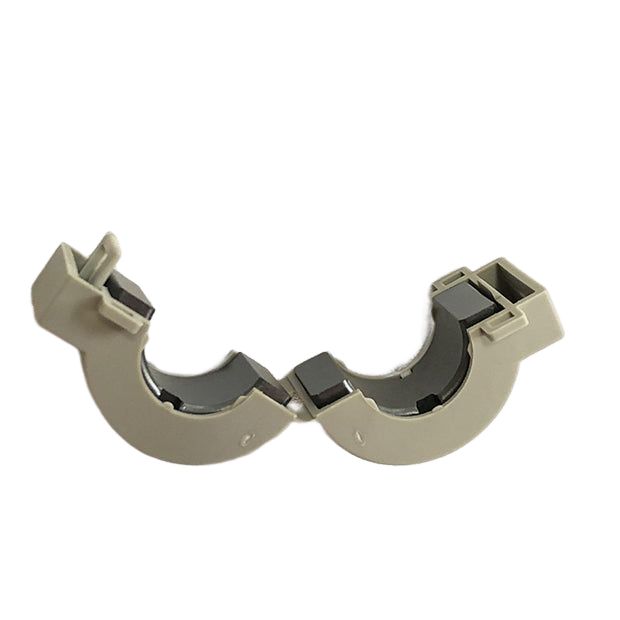

Fixed resin cased split toroidal core [DCK]
$19.00
$30.00
Tax included.
Shipping calculated at checkout.
在庫: あり
納期: 1～3日以内に出荷
- Barcode:
The toroidal core body can be attached to the screw-type fixture with one touch.
The height is also designed to be low to save space. (All five items do not require fixing devices and can also be used as relays.)
| Material |
Case and fasteners: 66 nylon Ni-Zi ferrite core |
| Applicable screws | M4 |
| standard | UL94 V-2 (case and fixings) |
| Model number | D | D1 | W | W1 | H | H1 | Minimum Impedance (Ω) | Compatible Wire | |
| 25MHz | 100MHz | (MAX) | |||||||
| DCK-1816 | 7.8 | 18.8 | 16.4 | 22.4 | 23.95 | 25.95 | 180 | 330 | 7φ |
| DCK-1819 | 7.8 | 18.8 | 19.4 | 25.4 | 23.95 | 25.95 | 200 | 390 | 7φ |
| DCK-2313 | 9.8 | 23.2 | 13.4 | 19.4 | 28.2 | 30.2 | 145 | 290 | 9φ |
| DCK-2617 | 11 | 26.6 | 17.4 | 23.4 | 31.6 | 33.6 | 213 | 365 | 10φ |
| DCK-2715 | 14.6 | 27.5 | 15.4 | 21.4 | 32.85 | 34.85 | 125 | 265 | 14φ |
Unit: mm Tolerance: ±1
| Model number | List price | 1 piece | 10 pieces | 50 pieces |
| DCK-1816 (with fixture) | 384 | 376 | 240 | 171 |
| DCK-2313 (with fixture) | 390 | 382 | 243 | 174 |
| DCK-2617 (with fixture) | 436 | 426 | 272 | 194 |
| DCK-2715 (with fixture) | 396 | 388 | 247 | 176 |
All prices are per item (excluding tax)
