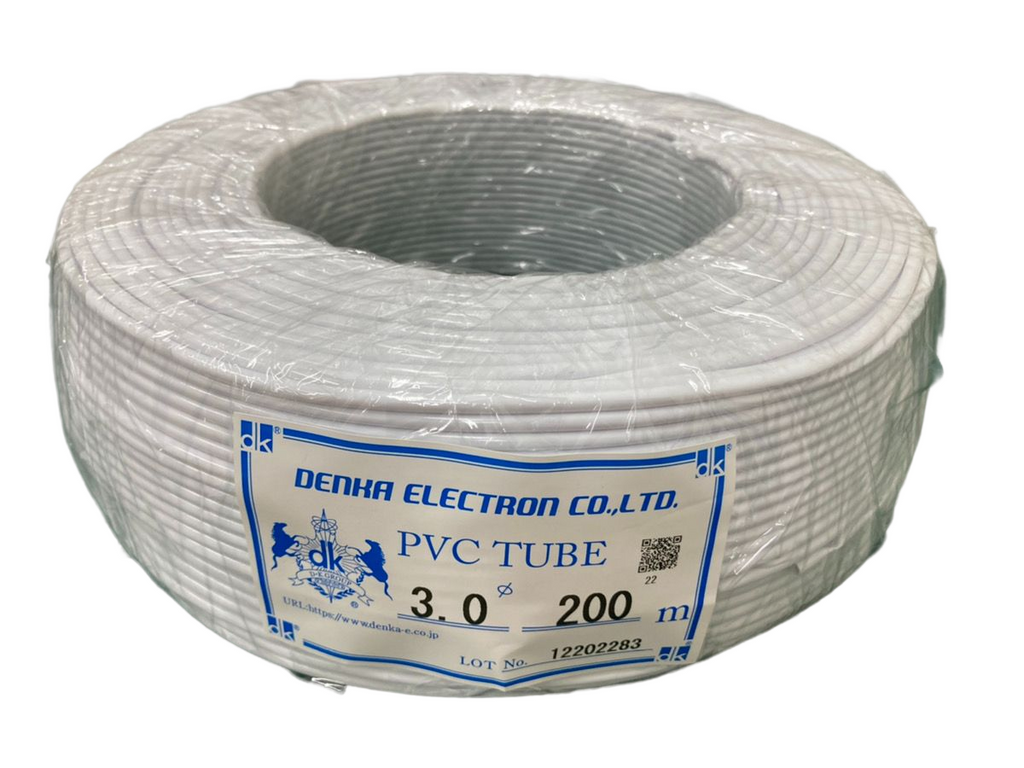

White vinyl tube [TB-W]

$69.00

Tax included. Shipping calculated at checkout.

在庫: あり

納期: 1～3日以内に出荷

価格が0円と表示される製品のご購入は弊社までお問い合わせください。

商品についてお問い合わせはこちら

Barcode:

↓Select the thumbnail of the item you want to view and you will be taken to the respective data.

The vinyl tube (white) allows for clear printing.

■Features

-We have a wide range of sizes available.

■Sales

・We have black, white and transparent in stock from 1φ to 20φ.

Click here for transparent vinyl tubes

Black vinyl tubes are available here

Other color types are available. Please contact us for more information.

- Custom colors are available, including gray, red, blue, yellow, green, and brown.

(Other colors are available.

■ Recruitment history

Manufacturers	Situation before employment	Effects on recruitment
Construction machinery manufacturer	・From 2024 PVC tubing was used to protect the hose, but the rising price of naphtha had been increasing the cost of the parts every year.	Switched to our own products. When switching over, we discussed in detail the flexibility, glossiness, thickness and packaging shape, and were able to achieve the customer's desired shape and reduce costs.

*Please contact us for more detailed information on case studies and results.

◆Click here for the catalogue

◆Product selection table is here

◆ROHS2 certificate is here

◆Other non-containing certificates can be found here

Material	PVC
standard	JISC2410 compliant
Operating temperature range	-20 to 60°C
Rated voltage	300V
Flame retardant	Equivalent to UL94HB

item	Test Method	characteristics
Low temperature bending	JIS C-2133 12	No cracks on the surface
Tensile strength	JIS C-2133 13	>10.4MPa
stretch	JIS C-2133 13	>100%
Breakdown voltage	JIS C-2133 15.1	2500V or more
Withstand voltage	JIS C-2133 15.2	Withstands 2500V for 1 minute
Oil resistance	JISK6723	70℃X4 hours 85% or more
Volumetric efficiency	JIS C-2133 17	>10 to the power of 14 Ω.m

Inner diameter D	Wall thickness T	Tolerance		Packing unit (volume/m)
Inner diameter D	Wall thickness T	Inner diameter	Wall thickness	Packing unit (volume/m)
0.8	0.4	±0.1	±0.08	1000
1.0	0.4	±0.1	±0.08	1000
1.5	0.4	±0.1	±0.08	200
2.0	0.4	±0.15	±0.08	200
2.5	0.4	±0.15	±0.08	200
2.8	0.45	±0.15	±0.08	200
3.0	0.45	±0.15	±0.02	200
3.2	0.45	±0.15	±0.02	200
3.4	0.45	±0.15	±0.02	200
3.5	0.45	±0.15	±0.02	200
3.6	0.45	±0.15	±0.02	200
3.8	0.45	±0.15	±0.02	200
4.0	0.45	±0.15	±0.02	200
4.2	0.45	±0.15	±0.02	200
4.5	0.45	±0.15	±0.02	200
5.0	0.5	±0.2	±0.02	200
5.1	0.5	±0.2	±0.02	200
5.5	0.5	±0.2	±0.02	200
6.0	0.5	±0.2	±0.02	200
6.2	0.5	±0.2	±0.02	200
6.5	0.5	±0.1	±0.02	200
7.0	0.5	±0.2	±0.02	200
7.5	0.5	±0.2	±0.02	100
8.0	0.5	±0.2	±0.02	100
9.0	0.5	±0.1	±0.02	100
9.5	0.5	±0.2	±0.02	100
10.0	0.5	±0.2	±0.02	100
11.0	0.5	±0.2	±0.02	100
12.0	0.5	±0.2	±0.1	100
13.0	0.5	±0.2	±0.1	100
14.0	0.55	±0.2	±0.1	100
15.0	0.55	±0.2	±0.1	100
16.0	0.6	±0.2	±0.1	100
18.0	0.6	±0.2	±0.1	50
20.0	0.75	±0.2	±0.1	50
25.0	0.8	±0.5	±0.1	50
30.0	0.8	±1.0	±0.1	50
35.0	1.0	±1.0	±0.1	50
40.0	1.0	±1.0	±0.1	50
50.0	1.0	±1.0	±0.1	50

*Folded diameter x 2 ÷ 3.14 = diameter (approximate)
Unit: mm

Model number	Inner diameter (φ)	1 volume (m)	List price	100m	1000m (Volume 1)
TB-0.8	0.8	200	9	-	8
TB-1.0	1.0	100	10		9
TB-1.2	1.2	200	11	-	10

Model number	Inner diameter (φ)	1 volume (m)	List price	100m	1 roll (200m)
TB-1.5	1.5	200	12	-	10
TB-2.0	2.0	200	13	-	10
TB-2.5	2.5	200	15	-	11
TB-2.8	2.8	200	16	-	12
TB-3.0	3.0	200	16	-	12
TB-3.2	3.2	200	17	-	12
TB-3.4	3.4	200	18	-	15
TB-3.5	3.5	200	19	-	15
TB-3.6	3.6	200	19	-	15
TB-3.8	3.8	200	twenty one	-	16
TB-4.0	4.0	200	twenty two	-	16
TB-4.2	4.2	200	twenty three	-	17
TB-4.5	4.5	200	twenty five	-	18
TB-5.0	5.0	200	28	-	twenty one
TB-5.1	5.1	200	28	-	twenty two
TB-5.5	5.5	200	31	-	twenty three
TB-6.0	6.0	200	34	-	26
TB-7.0	7.0	200	36	-	35

Model number	Inner diameter (φ)	1 volume (m)	List price	1 roll 100m	1,000m (Volume 10)
TB-8.0	8.0	100	44	42	-
TB-9.0	9.0	100	46	47	-
TB-10	10.0	100	55	53	-
TB-12	12.0	100	66	63	-
TB-15	15.0	100	89	86	-

Model number	Inner diameter (φ)	1 volume (m)	List price	1 roll 50m	500m (Volume 10)
TB-20	20.0	50	165	154	-

All prices are per meter (excluding tax) ⇒How to read the price list

Sizes not listed are made to order.
*Price revision: September 2, 2024
