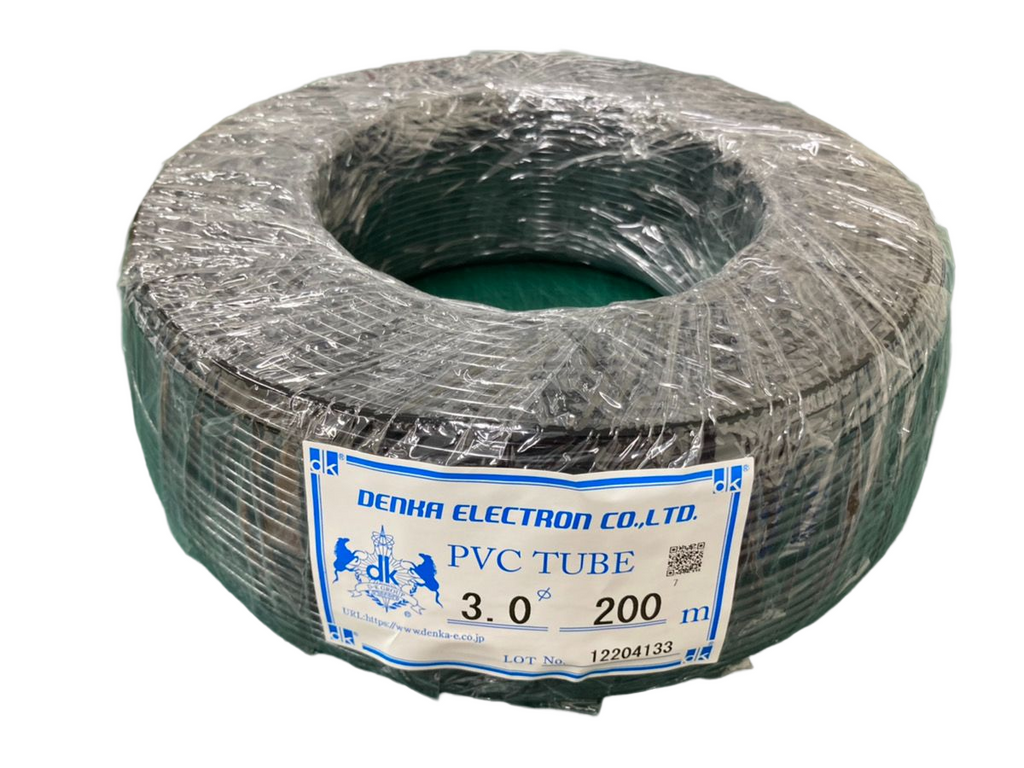

Black vinyl tube [TB-B]
Black vinyl tube [TB-B]

    Black vinyl tube [TB-B]

    $69.00
    Tax included. Shipping calculated at checkout.
    在庫: あり
    納期: 1～3日以内に出荷
    価格が0円と表示される製品のご購入は弊社までお問い合わせください。
    商品についてお問い合わせはこちら
    • Barcode:

      ↓Select the thumbnail of the item you want to view and you will be taken to the respective data.

      • Materials
      • Specifications
      • size
      • Price List
      Product overview

      Denka Electron black vinyl tubing.

      ■Features

      -We have a wide range of sizes available.

      ■Sales

      ・We have black, white and transparent in stock from 1φ to 20φ.

      White vinyl tubes are available here

      Click here for transparent vinyl tubes

      Other color types are available. Please contact us for more information.

      ■ Recruitment history

      Manufacturers Situation before employment Effects on recruitment
      Construction machinery manufacturer

      ・From 2024
      PVC tubing was used to protect the hose, but the rising price of naphtha had been causing the cost of parts to rise every year.

      		Switched to our own products.
      When switching over, we discussed in detail the flexibility, glossiness, thickness and packaging shape, and were able to achieve the customer's desired shape and reduce costs.

      *Please contact us for more detailed information on case studies and results.

      Download materials

      ◆Click here for the catalogue

      ◆Product selection table is here

      ◆ROHS2 certificate is here

      ◆Other non-containing certificates can be found here


      Specifications

      Material PVC
      standard JISC2410 compliant
      Operating temperature range -20 to 60°C
      Rated voltage 300V
      Flame retardant Equivalent to UL94HB

      data


      item Test Method characteristics
      Low temperature bending JIS C-2133 12 No cracks on the surface
      Tensile strength JIS C-2133 13 >10.4MPa
      stretch JIS C-2133 13 >100%
      Breakdown voltage JIS C-2133 15.1 2500V or more
      Withstand voltage JIS C-2133 15.2 Withstands 2500V for 1 minute
      Oil resistance JISK6723 70℃X4 hours 85% or more
      Volumetric efficiency JIS C-2133 17 >10 to the power of 14 Ω.m

      size

      デンカビニールチューブ サイズ

      Inner diameter D Thick T Tolerance Packing unit
      (volume/m)
      Inner diameter Wall thickness
      0.8 0.4 ±0.1 ±0.08 1000
      1.0 0.4 ±0.1 ±0.08 1000
      1.5 0.4 ±0.1 ±0.08 200
      2.0 0.4 ±0.15 ±0.08 200
      2.5 0.4 ±0.15 ±0.08 200
      2.8 0.45 ±0.15 ±0.08 200
      3.0 0.45 ±0.15 ±0.02 200
      3.2 0.45 ±0.15 ±0.02 200
      3.4 0.45 ±0.15 ±0.02 200
      3.5 0.45 ±0.15 ±0.02 200
      3.6 0.45 ±0.15 ±0.02 200
      3.8 0.45 ±0.15 ±0.02 200
      4.0 0.45 ±0.15 ±0.02 200
      4.2 0.45 ±0.15 ±0.02 200
      4.5 0.45 ±0.15 ±0.02 200
      5.0 0.5 ±0.2 ±0.02 200
      5.1 0.5 ±0.2 ±0.02 200
      5.5 0.5 ±0.2 ±0.02 200
      6.0 0.5 ±0.2 ±0.02 200
      6.2 0.5 ±0.2 ±0.02 200
      6.5 0.5 ±0.1 ±0.02 200
      7.0 0.5 ±0.2 ±0.02 200
      7.5 0.5 ±0.2 ±0.02 100
      8.0 0.5 ±0.2 ±0.02 100
      9.0 0.5 ±0.1 ±0.02 100
      9.5 0.5 ±0.2 ±0.02 100
      10.0 0.5 ±0.2 ±0.02 100
      11.0 0.5 ±0.2 ±0.02 100
      12.0 0.5 ±0.2 ±0.1 100
      13.0 0.5 ±0.2 ±0.1 100
      14.0 0.55 ±0.2 ±0.1 100
      15.0 0.55 ±0.2 ±0.1 100
      16.0 0.6 ±0.2 ±0.1 100
      18.0 0.6 ±0.2 ±0.1 50
      20.0 0.75 ±0.2 ±0.1 50
      25.0 0.8 ±0.5 ±0.1 50
      30.0 0.8 ±1.0 ±0.1 50
      35.0 1.0 ±1.0 ±0.1 50
      40.0 1.0 ±1.0 ±0.1 50
      50.0 1.0 ±1.0 ±0.1 50

      *Folded diameter x 2 ÷ 3.14 = diameter (approximate)
      Unit: mm

      Price List

      Model number Inner diameter (φ) 1 volume (m) List price 100m 1000m
      (Volume 1)
      TB-0.8 0.8 200 9 - 8
      TB-1.0 1.0 100 10 9
      TB-1.2 1.2 200 11 - 10
      Model number Inner diameter (φ) 1 volume (m) List price 100m 1 roll (200m)
      TB-1.5 1.5 200 12 - 10
      TB-2.0 2.0 200 13 - 10
      TB-2.5 2.5 200 15 - 11
      TB-2.8 2.8 200 16 - 12
      TB-3.0 3.0 200 16 - 12
      TB-3.2 3.2 200 17 - 12
      TB-3.4 3.4 200 18 - 15
      TB-3.5 3.5 200 19 - 15
      TB-3.6 3.6 200 19 - 15
      TB-3.8 3.8 200 twenty one - 16
      TB-4.0 4.0 200 twenty two - 16
      TB-4.2 4.2 200 twenty three - 17
      TB-4.5 4.5 200 twenty five - 18
      TB-5.0 5.0 200 28 - twenty one
      TB-5.1 5.1 200 28 - twenty two
      TB-5.5 5.5 200 31 - twenty three
      TB-6.0 6.0 200 34 - 26
      TB-7.0 7.0 200 36 - 35
      Model number Inner diameter (φ) 1 volume (m) List price 1 roll 100m 1,000m
      (Volume 10)
      TB-8.0 8.0 100 44 42 -
      TB-9.0 9.0 100 46 47 -
      TB-10 10.0 100 55 53 -
      TB-12 12.0 100 66 63 -
      TB-15 15.0 100 89 86 -
      Model number Inner diameter (φ) 1 volume (m) List price 1 roll 50m 500m
      (Volume 10)
      TB-20 20.0 50 165 154 -

      All prices are per meter (excluding tax) ⇒How to read the price list

      Sizes not listed are made to order.
      *Price revision: September 2, 2024
