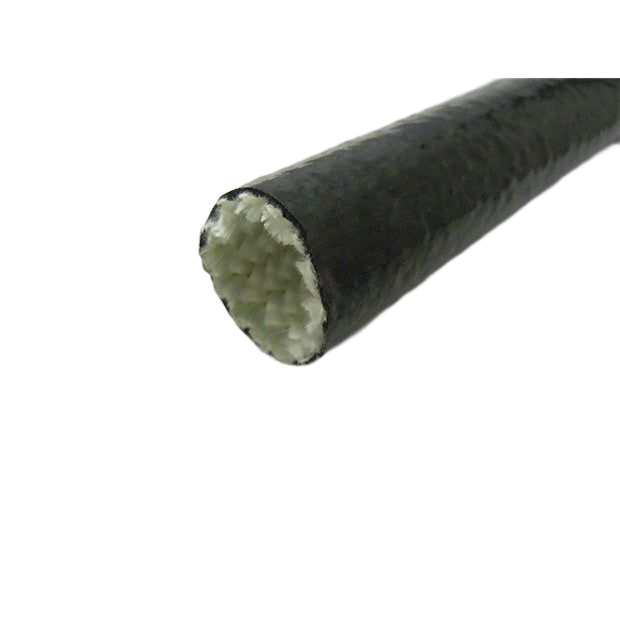

Silicone insulation tube [FLG]
$850.00
$1,020.00
Tax included.
Shipping calculated at checkout.
在庫: あり
納期: 1～3日以内に出荷
- Barcode:
Silicone coated glass fiber tube
■Features
- Heat resistant up to 260°C, protects pipes and electrical wires inside the tube.
- Excellent moisture resistance and heat insulation properties .
◆Click here for the catalogue
◆Product selection table is here
◆ROHS2 certificate is here
| Material | Silicone + Glass Fiber |
| Operating temperature range | -54℃ to 260℃ |
| Model number | Inner diameter | Wall thickness | Packaging unit | ||||||||||
| D | T (approx.) | m/volume | |||||||||||
| FLG-9 | 9.5 | 1.8±0.3 | 30 | ||||||||||
| FLG-12 | 12.7 | ||||||||||||
| FLG-15 | 15.9 | ||||||||||||
| FLG-19 | 19.1 | ||||||||||||
| FLG-30 | 31.8 | 15 | |||||||||||
| FLG-38 | 38.1 | ||||||||||||
| FLG-50 | 50.8 | ||||||||||||
| FLG-57 | 57.2 | ||||||||||||
| FLG-63 | 63.5 | ||||||||||||
| FLG-69 | 69.9 | ||||||||||||
| FLG-73 | 73.0 | ||||||||||||
| FLG-76 | 76.2 | ||||||||||||
| FLG-88 | 88.9 | ||||||||||||
| FLG-101 | 101.6 | ||||||||||||
Unit: mm
| Model number | Volume 1 | List price | 1 roll (30m) | 3 rolls (90m) | 6 rolls (180m) |
| FLG-9 | 30m | 4,465 | 3,721 | 3,349 | 2,828 |
| FLG-12 | 30m | 4,522 | 3,768 | 3,392 | 2,864 |
| FLG-15 | 30m | 7,534 | 6,278 | 5,651 | 4,772 |
| FLG-19 | 30m | 7,936 | 6,613 | 5,952 | 5,026 |
| Model number | Volume 1 | List price | 1 roll (15m) | 4 rolls (60m) | 12 rolls (180m) |
| FLG-30 | 15m | 11,278 | 9,398 | 8,458 | 7,142 |
| FLG-38 | 15m | - | Contact us | ||
| FLG-50 | 15m | - | Contact us | ||
All prices are per meter (excluding tax) ⇒How to read the price list
You can purchase it in units of one volume.
Depending on the overseas order, delivery time will be 2 to 3 months.
