Post-installation Velcro braided tube [FLR]

Post-installation Velcro braided tube [FLR]

$13.00 $14.00

Tax included. Shipping calculated at checkout.

在庫: あり

As of August 8th, FLR-5-30 is out of stock, so delivery will take approximately one month.

納期: 1～3日以内に出荷

価格が0円と表示される製品のご購入は弊社までお問い合わせください。

商品についてお問い合わせはこちら

Barcode:

Easily removable sleeve

■Features

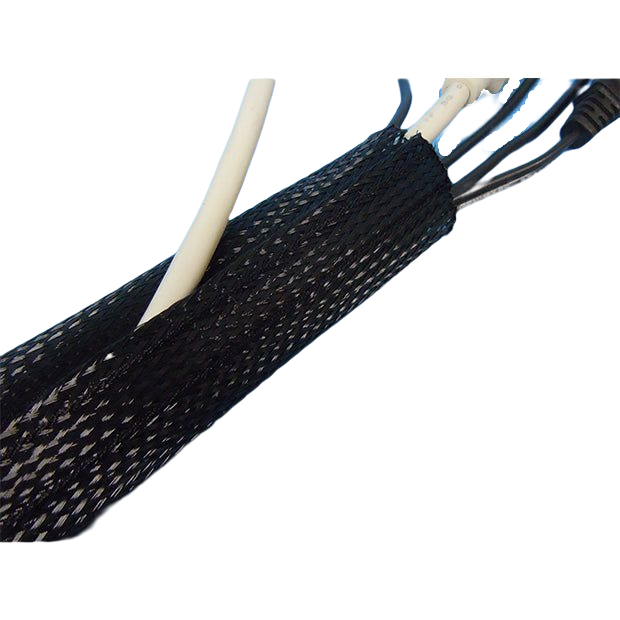

- The cable stretches to more than twice its natural diameter, making it easy to add wire midway. Even in places with protruding connectors, such as the circle in the photo below, the cable's good stretchability allows for secure bundling.
- UL standard product. (File No: E347759

■ Recruitment history
- For cable protection in railway vehicles, automobiles, machine tools, amusement equipment, audio/visual equipment

Manufacturers	Situation before employment	Effects on recruitment
Data Center	・From 2017 The traditional method of processing intermediate joints in cables within data centers, which involves using sleeves, insulating tape, and tubes, was problematic in that it required too many man-hours. In environments where insulation is guaranteed, it became necessary to simplify the components in order to reduce the work time.	By changing the tube used for intermediate connections to our braided tube, workability was greatly improved. In addition to being able to wrap it around with Velcro, the braided tube is stretchy, so it fits easily to the bulging parts of the installation target.

*Please contact us for more detailed information on case studies and results.

■Sales
・This product can be purchased in quantities starting from 1m.

■ Examples of made-to-order products
- Custom orders are also possible, including desired sizes and softness.

*Due to the braided tube, fraying will occur at the cut edge after cutting with scissors.
Please use a soldering iron or a dedicated cutter .

Material	Polyester Monofilament Nylon Velcro
Operating temperature range	-70 to 125°C
Melting point	250℃
standard	UL224 File No:E347759
Standard Color	black

Model number	Reduced minimum diameter D	Maximum expansion diameter	Scope of application
FLR-5	about 5	about 15	3 to 15
FLR-10	about 10	about 20	8 to 25
FLR-20	about 20	about 44	15 to 40
FLR-40	about 40	about 70	35 to 65

*Because this is a braided tube, the folded diameter and width may vary slightly depending on the lot.

Unit: mm

Model number	natural diameter	Volume 1	List price	1m	5m	15m	1 roll (30m)
FLR-5	Approximately 5.0 mm	30m	1,802	1,689	1,577	1,464	1,307
FLR-10	Approximately 10.0 mm	30m	2,107	1,976	1,844	1,712	1,528
FLR-20	Approximately 20.0 mm	30m	3,054	2,863	2,672	2,481	2,214
FLR-40	Approximately 40.0 mm	30m	3,206	3,006	2,806	2,605	2,325

All prices are per meter (excluding tax) ⇒How to read the price list
Price change: March 29, 2011

Post-installation Velcro braided tube [FLR]

Easily removable sleeve

*Please contact us for more detailed information on case studies and results.

◆Click here for the catalogue

◆Product selection table is here

◆ Packaging specifications are here

◆RoHS2 certificate is here

◆Other non-containing certificates can be found here
