Hydraulic hose protective cover, large diameter type [DM]
Hydraulic hose protective cover, large diameter type [DM]

    Hydraulic hose protective cover, large diameter type [DM]

    $0.00
    Tax included. Shipping calculated at checkout.
    在庫: あり
    納期: About a month
    価格が0円と表示される製品のご購入は弊社までお問い合わせください。
    商品についてお問い合わせはこちら
    • Barcode:

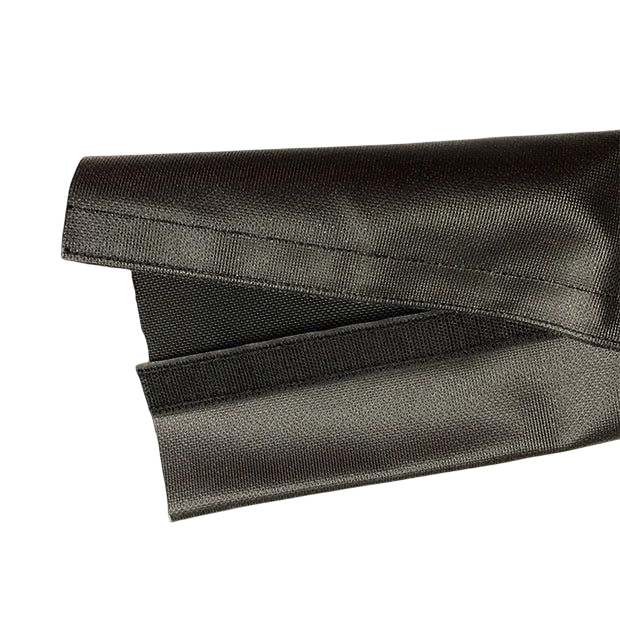

    A protective tube with excellent abrasion resistance that can be attached afterwards

    ■Features
    -Excellent wear resistance .
    -Ideal for strong impacts and outdoor use.
    ・It can also be cut with scissors and used.

    - Resistant to oil (hydraulic oil, lubricating oil), and the tube surface is water-repellent.
    - The Velcro is 25mm wide, which is wider than regular protective tubes, so it can be used for a long time even with repeated opening and closing.
    -Since it is a Velcro type, it is also possible to branch out the wiring wires .

    ■ Recruitment history
    ・For protecting high pressure hoses and rubber hoses from scattering, FA equipment, robots, power machinery, marine equipment, cleaning robots, etc.

    Manufacturers Situation before employment Effects on recruitment
    Construction machinery manufacturer

    ・From 2024
    A construction machinery manufacturer needed to consider a new hydraulic hose cover that was more durable and had a larger diameter than 100mm compared to conventional hydraulic hose covers (nylon sleeves and sunny hoses).
    In addition, because the length of use is short and the sleeve is movable, products with easily frayed edges, such as nylon sleeves, could not be used.

    		Our DM tubes come in large diameter sizes exceeding 100mm, and can be cut with scissors without fraying, making them a product that is not available from other companies.

    *Please contact us for more detailed information on case studies and results.

    ■Sales
    -Made to order.

    ■ Examples of made-to-order products
    - We can also sew to your specified length and reinforce the Velcro.

    Download materials

    ◆Click here for the catalogue

    Material 6 Polyamide
    Operating temperature range -50 to 125°C
    Melting point 210℃
    color black

    Model number Natural diameter (approx.) Packaging unit m/roll
    DM-25 25.4 45
    DM-40 38.1
    DM-50 50.8
    DM-65 63.5
    DM-80 76.2
    DM-90 88.9
    DM-100 101.6
    DM-125 114.3
    DM-150 152.4
    DM-200 203.4

    Thickness: 0.7 mm
    Unit: mm

    Depending on the overseas order, delivery time will be 2 to 3 months.
