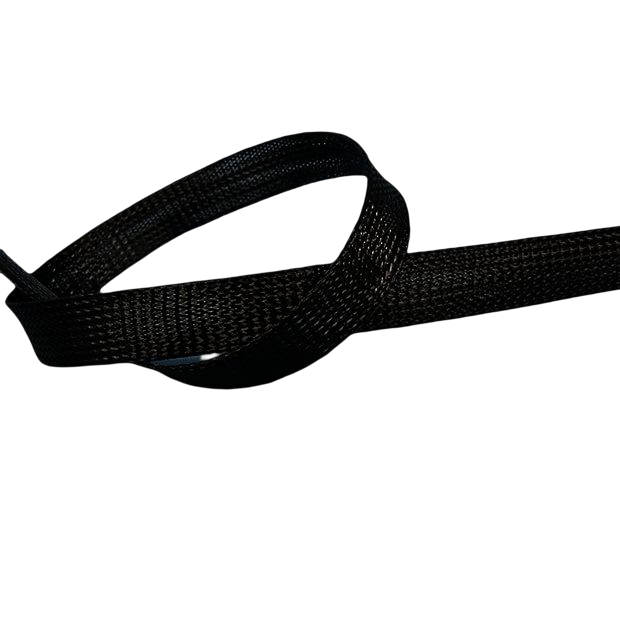

Lightweight and heat-resistant braided sleeving [FLP]
$1,023.00
$1,076.00
Tax included.
Shipping calculated at checkout.
在庫: あり
納期: 1～3日以内に出荷
- Barcode:
Sleeve with excellent chemical resistance
■Features
- A lightweight, expandable tube ( mesh tube ) that is heat resistant up to 200°C and has excellent flame retardancy.
-It also has excellent chemical resistance, resulting in extremely high stability.
- This is an expandable tube (mesh tube [sleeve]) that has passed the FAR25 (fire resistance test), a standard set by the US Federal Aviation Administration.
Click here for the catalogue
| Material | Polyethylene sulfite monofilament |
| Operating temperature range | -75 to 200°C |
| Melting point | 310℃ |
| standard | UL 94 V-0, FAR25 |
| Standard Color | black |
| Model number | Folding diameter width E (approx.) |
Maximum expansion diameter D (approx.) |
Packaging unit: m/roll |
| FLP-3 | 3.1 | 6.3 | 300 |
| FLP-6 | 6.3 | 9.5 | |
| FLP-12 | 12.7 | 19.0 | 150 |
| FLP-19 | 19.0 | 31.0 | 75 |
| FLP-30 | 31.0 | 44.0 | |
| FLP-45 | 44.0 | 63.0 | 60 |
Unit: mm
*The folded diameter and width may vary slightly depending on the braided tube and lot.
| Model number | Volume 1 | List price | 1 roll (300m) | 3 rolls (900m) | 6 rolls (1800m) |
| FLP-3 | 300m | 471 | 448 | 378 | 295 |
| FLP-6 | 300m | 640 | 608 | 512 | 400 |
| Model number | Volume 1 | List price | 1 roll (150m) | 4 rolls (600m) | 8 rolls (1200m) |
| FLP-12 | 150m | 1,178 | 1,120 | 943 | 737 |
| Model number | Volume 1 | List price | 1 roll (75m) | 4 rolls (300m) | 12 rolls (900m) |
| FLP-19 | 75m | 1,456 | 1,383 | 1,165 | 910 |
| FLP-30 | 75m | 2,032 | 1,930 | 1,626 | 1,270 |
| Model number | Volume 1 | List price | 1 roll (60m) | 3 rolls (180m) | 5 rolls (300m) |
| FLP-45 | 60m | 2,438 | 2,316 | 1,951 | 1,524 |
All prices are per meter (excluding tax) ⇒How to read the price list
You can purchase it in units of one roll. Due to overseas orders, delivery time may take 2-3 months.
