Slit corrugated tube [DKT-S]

    Slit corrugated tube [DKT-S]

    $2.00 $3.00
    Tax included. Shipping calculated at checkout.
    在庫: あり
    As of August 8th, DKT-5S-100/DKT-7S-50/DKT-22S-50/DKT-28S-35 are out of stock and delivery will take approximately one month.
    納期: 1～3日以内に出荷
    価格が0円と表示される製品のご購入は弊社までお問い合わせください。
    商品についてお問い合わせはこちら
    • Barcode:

      ↓Select the thumbnail of the item you want to view and you will be taken to the respective data.

      • Materials
      • Specifications
      • size
      • Price List
      Product overview

      Slit corrugated tube

      ■Features
      - Slits are made in the extension direction, making it easy to store wire.
      - This tube is moderately soft and easy to use, and can be easily attached or removed later.
      -It is packed in a box, making it easy to manage inventory and allowing you to use it without it getting tangled.
      -The standard color is black.

      ■ Recruitment history
      ・Protection of wiring in offices and equipment

      ・Automobile manufacturers

      - Protecting wiring in ordinary homes - Preventing pets (dogs and cats) from chewing on cords and wiring

      ■Sales

      Each size starts from 5m.

      ■ Examples of made-to-order products
      ・We can also manufacture custom colors. Please contact us if you are interested .

      Download materials

      ◆Click here for the catalogue

      ◆Product feature page

      ◆ Packaging specifications (box size and weight)

      ◆Product selection table is here

      ◆ROHS2 certificate is here

      ◆Other non-containing certificates can be found here

      Specifications

      Material Flame-retardant polypropylene
      Operating temperature range -40 to 110°C

      size

      コルゲートチューブ サイズ

      Model number Inner Diameter ID Outer diameter OD Thickness T W L Length (m)
      DKT-5S 5.2±0.4 7.4±0.4 0.27±0.1 1.5±0.2 2.1±0.2 100
      DKT-7S 7.0±0.4 10.0±0.4 0.27±0.1 1.95±0.2 2.7±0.2 50
      DKT-10S 11.2±0.4 14.0±0.4 0.3±0.1 1.95±0.2 2.7±0.2 50
      DKT-13S 13.2±0.4 17±0.4 0.35±0.1 2.3±0.2 3.2±0.2 50
      DKT-15S 15.1±0.4 19.7±0.4 0.35±0.1 2.3±0.2 3.2±0.2 50
      DKT-19S 19±0.5 23.5±0.5 0.4±0.1 2.3±0.2 3.2±0.2 50
      DKT-22S 22±0.5 26.8±0.5 0.4±0.1 2.3±0.2 3.2±0.2 50
      DKT-25S 25.5±0.5 32.0±0.5 0.4±0.1 2.75±0.2 4.5±0.2 50
      DKT-28S 29.0±0.6 34.5±0.6 0.45±0.1 2.35±0.2 3.5±0.2 35
      DKT-32S 32±0.6 37.0±0.6 0.45±0.1 2.35±0.2 3.3±0.2 30


      Unit: mm
      *Size revision: March 15, 2017

      Price List

      Model number Inner diameter (mm) 1 volume (m) List price 5m 100m
      DKT-5S 5.2±0.4 100 53 52 37
      Model number Inner diameter (mm) 1 volume (m) List price 5m 50m
      DKT-7S 7.0±0.4 50 66 64 50
      DKT-10S 11.2±0.4 50 84 82 64
      Model number Inner diameter (mm) 1 volume (m) List price 5m 50m
      DKT-13S 13.2±0.4 50 133 130 102
      DKT-15S 15.1±0.4 50 141 137 107
      Model number Inner diameter (mm) 1 volume (m) List price 5m 50m
      DKT-19S 19.0±0.5 50 170 166 130
      DKT-22S 22.0±0.5 50 180 177 156
      DKT-25S 25.5±0.5 50 190 186 165
      Model number Inner diameter (mm) 1 volume (m) List price 5m 30m
      DKT-32S 32±0.6 30 375 371 327

      Price is per meter (excluding tax)
      Sales are based on minimum purchase units ⇒ How to read the price list
      *Price revision: March 15, 2017

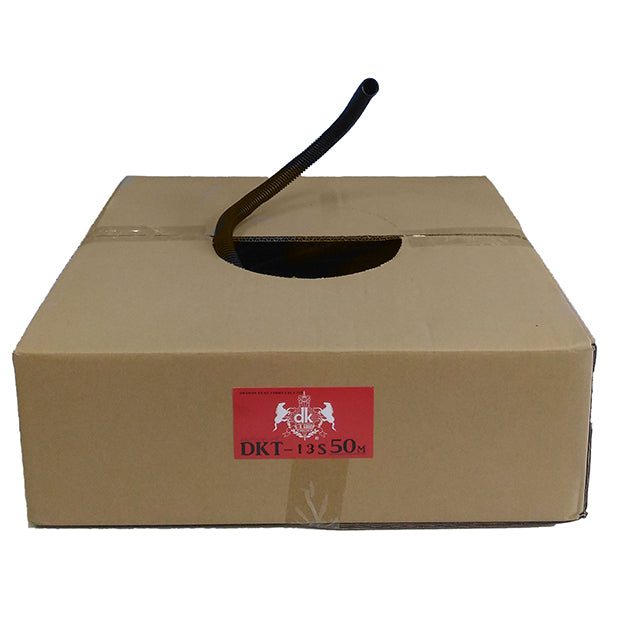

      *5m items are packaged in a bag. Only single rolls are packaged in a special box.
