Twin rail retractable wiring protection tube [TRX]

Twin rail retractable wiring protection tube [TRX]

$4.00 $5.00

Tax included. Shipping calculated at checkout.

在庫: あり

納期: Approximately 1-2 weeks from order

価格が0円と表示される製品のご購入は弊社までお問い合わせください。

商品についてお問い合わせはこちら

Barcode:

↓Select the thumbnail of the item you want to view and you will be taken to the respective data.

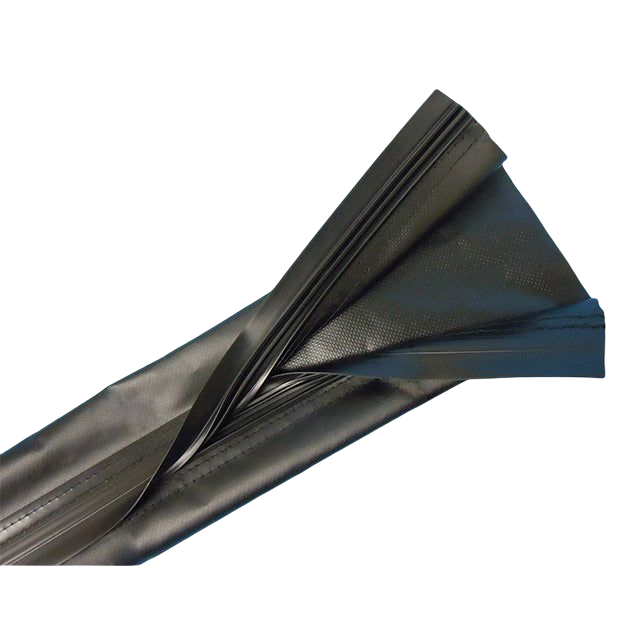

Twin rail opening and closing type wiring protection tube

■Features
- A wiring protection tube that can be easily opened and closed without tools, making it effective for use over long distances.
- It can be cut to any length with scissors, making it easy to use on site.
- The mating parts have a high degree of adhesion, making them extremely dust-proof and drip-proof.
- It is easy to add or branch wires midway.
- The strong binding force prevents the bag from opening up naturally at curved sections.
- It is easier to open and close if the rail part is flat.

■ Recruitment history
・For wiring protection, industrial equipment, audio equipment, etc.

Manufacturers	Situation before employment	Effects on recruitment
Semiconductor manufacturing equipment manufacturer	・From 2010 A semiconductor manufacturing equipment manufacturer encountered the task of bundling multiple wires. The same work was required in multiple processes and at multiple partner factories, so they were looking for a product that did not require tool management, could be installed manually, and did not generate dust.	Our TRX uses a snap-in rail that can be attached manually, eliminating the need to manage tools and construction methods, and streamlining work management across multiple processes and external factories.

Material	Polyester cloth PVC sheet Rail: PVC
Flame retardant	UL94 V-0 equivalent
Specified temperature range	-5 to 60°C

Model number	D±3	W±3	1 volume (m)
TRX-20	20	97	twenty five
TRX-25	twenty five	104
TRX-30	30	125
TRX-40	40	157
TRX-50	50	187
TRX-60	60	224
TRX-80	80	288
TRX-110	110	378

Unit: mm

Model number	Inner diameter ±3	Volume 1	List price	1m	5m	10m	25m ( 1 roll )
TRX-20	20mm	25m	560	496	448	400	320
TRX-25	25mm	25m	578	512	462	413	330
TRX-30	30mm	25m	606	537	485	433	346
TRX-40	40mm	25m	634	562	507	453	362
TRX-50	50mm	25m	665	589	532	475	380
TRX-60	60mm	25m	721	639	577	515	412
TRX-80	80mm	25m	784	695	628	560	448
TRX-110	110mm	25m	900	797	720	643	514
