Hook and eye button tube, black/gray reversible type [HB]

Hook and eye button tube, black/gray reversible type [HB]

$4.00

Tax included. Shipping calculated at checkout.

在庫: あり

9/5時点　HB-50-50は欠品中のため納期1か月程度となります。

納期: 1～3日以内に出荷

価格が0円と表示される製品のご購入は弊社までお問い合わせください。

商品についてお問い合わせはこちら

Barcode:

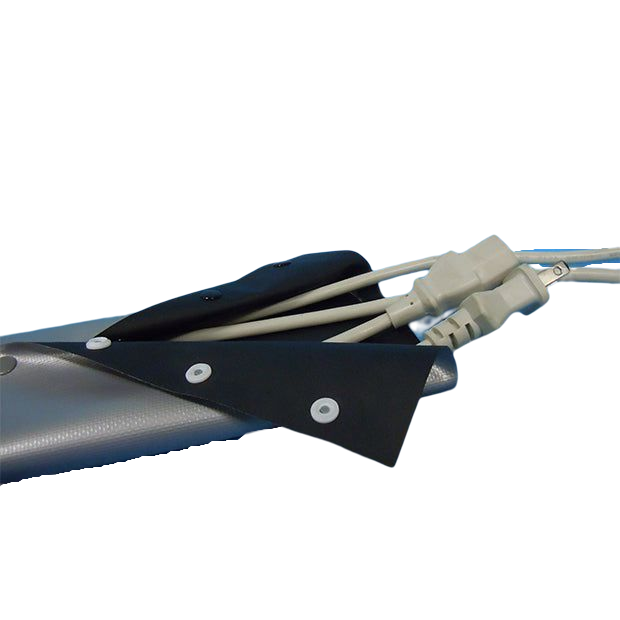

Reversible hook and eye button tube

■Features
- The seams are opened and closed with hooks (buttons), making it less likely to generate static electricity.
-It is a reversible type with grey/black colours, so you can use it according to your needs.

■ Recruitment history
・For wiring protection, industrial equipment, audio equipment, etc.

■Sales
・This product can be purchased in quantities starting from 1m.

■ Examples of made-to-order products
・Custom colors are also available. Please contact us .

*Hook tubes with shielding are also available. Please see the FKS tube page for details.

◆Click here for the catalogue

◆Product selection table is here

◆ROHS2 certificate is here

◆Other non-containing certificates can be found here

◆ Packaging specifications are here

It can be used reversibly.

Material	Seat: PVC sheet with polyester cloth
Material	Hook and eye button: POM
Specified temperature range	-5 to 85°C
Standard Color	Gray/black reversible

Model number	Conjugation diameter D	1 volume (m)
HB-10	5 to 10	50
HB-15	13 to 16
HB-20	16 to 21
HB-25	21 to 26
HB-30	26 to 31
HB-40	31 to 41
HB-50	41-51
HB-70	52 to 72
HB-100	72～105
HB-150	105 to 125

Unit: mm

Model number	Inner diameter (mm)	1 volume (m)	List price	1m	5m	10m	50m (Volume 1)
HB-10	5 to 10	50	447	419	377	349	307
HB-15	13 to 16	50	480	450	405	375	330
HB-20	16 to 21	50	531	498	448	415	365
HB-25	21 to 26	50	541	507	456	422	372
HB-30	26 to 31	50	572	536	482	447	393
HB-40	31 to 41	50	664	623	561	519	457
HB-50	41-51	50	705	661	595	551	485
HB-70	52 to 72	50	991	929	836	774	681
HB-100	72～105	50	1,330	1,247	1,122	1,039	915
HB-150	105 to 150	50	1,615	1,514	1,362	1,261	1,110

*Can also be manufactured in 50m rolls.
