Retrofittable UL braided tube [FLM-FR]

$3.00

Tax included. Shipping calculated at checkout.

在庫: あり

As of August 8th, FLM-3FR-120/FLM-25FR-30 are out of stock, so delivery will take approximately one month.

納期: 1～3日以内に出荷

価格が0円と表示される製品のご購入は弊社までお問い合わせください。

商品についてお問い合わせはこちら

Barcode:

↓Select the thumbnail of the item you want to view and you will be taken to the respective data.

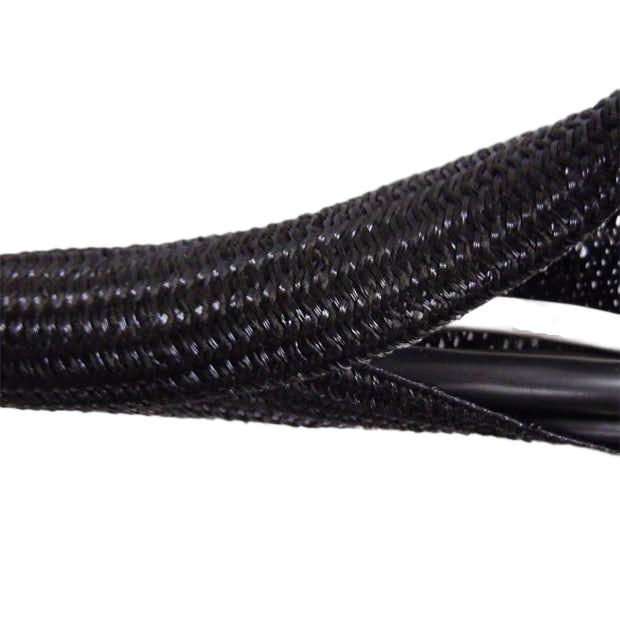

A shape-memory, wrap-around type braided sleeve that can be inserted later.

■Features
Lightweight, flexible, and perfectly fitted to the wires it protects, this tube maintains its cylindrical sleeve shape even when bent, preventing wires from coming out .
・The self-extinguishing FLM-FR tube has been certified to UL224 VW-1 (UL File No: E347759).
・This product is made from completely halogen-free materials.
- As a pioneer of self-wrapped tubes, we have over 30 years of experience in a variety of industrial fields.

■ Recruitment history
・For cable protection in railway vehicles, automobiles, machine tools, amusement equipment, audio/visual equipment, and medical equipment

- Protecting wiring in the home, preventing pets (dogs and cats) from biting into cords and wiring, and preventing wire breakage.

Manufacturers	Situation before employment	Effects on recruitment
robot manufacturer	・From 2019 A collaborative robot manufacturer was investigating protective materials for cables that follow the XYZ arm movements. We needed a product that was light, flexible, highly abrasion-resistant, and flame-retardant, and we had to consider multiple sizes.	Our FLM-FR can be customized in length, comes in nine different sizes, and is UL224VW-1 certified. It was adopted as a product that could solve all of the customer's issues. As a result, a stable supply of this important cable protection material for collaborative robots exported globally was achieved.

*Please contact us for more detailed information on case studies and results.

■Sales
・This product can be purchased in quantities starting from 1m.

■ Examples of made-to-order products
- Custom orders are also possible, including desired sizes and softness.

*Due to the braided tube, fraying will occur at the cut edge after cutting with scissors.
Please use a soldering iron or a dedicated cutter .

It is three times more abrasion resistant than regular braided tubing.

Material	Polyester Monofilament Polyester multifilament
Operating temperature range	-70℃ to 125℃
Melting point	230℃
standard	UL224, VW-1 /File No.: E347759 Passed the combustion test for materials used in railway vehicles
Standard Color	black

Model number	natural inner diameter	Scope of application	Packaging unit: m/roll
FLM-3FR	about 3	3 to 3.5	120
FLM-6FR	about 6	6-7	60
FLM-9FR	about 9	9 to 11	45
FLM-12FR	about 12	12 to 15	45
FLM-19FR	about 19	19 to 23	30
FLM-25FR	about 25	25 to 32	30
FLM-30FR	about 30	30-37	twenty two
FLM-38FR	about 38	38 to 45	twenty two
FLM-50FR	about 50	50-57	15

*Due to the nature of braided sleeving, the folded diameter and width may vary slightly depending on the lot. Unit: mm

Model number	natural diameter	Volume 1	List price	1m	10m	Volume 1
FLM-3FR	3mm	120m	374	300	262	210
FLM-6FR	6mm	60m	690	553	484	387
FLM-9FR	9mm	45m	830	680	620	520
FLM-12FR	12mm	45m	1,060	848	742	594
FLM-19FR	19mm	30m	1,346	1,077	943	754
FLM-25FR	25mm	30m	1,877	1,502	1,315	1,052
FLM-30FR	30mm	22m	3,072	2,534	2,304	-
FLM-38FR	38mm	22m	-	-	-	-
FLM-50FR	50mm	15m	4,300	3,548	3,225	-

Braided sleeving prices are per meter (excluding tax) ⇒How to read the price list
