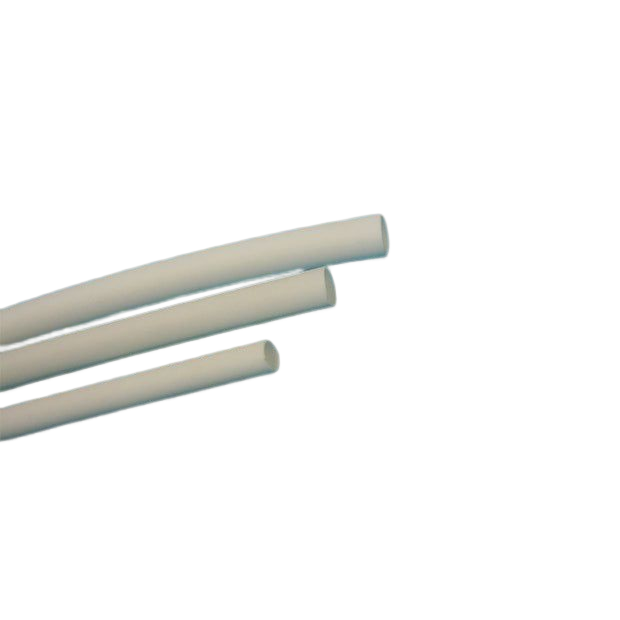

Non-halogen tube [ETC]
$4.00
Tax included.
Shipping calculated at checkout.
在庫: あり
納期: 1～3日以内に出荷
- Barcode:
Completely halogen-free polyolefin tube
■Features
- A marking/ wire protection tube that does not contain any harmful substances such as bromine or nitrogen.
- Made of polyolefin, it has high heat resistance and can also be used as a protective tube.
- The slightly oval shape prevents it from falling off when attached and makes it easy to position.
- The letters engraved on the tube will not easily disappear.
- As it is a non-shrinking type tube , it is also suitable for insulating and protecting wires.
■ Recruitment history
Railway vehicle equipment
■Sales
10m and up
◆Click here for the catalogue
◆RoHS2 certificate is here
◆Other non-containing certificates can be found here
◆Product selection table is here
◆ Packaging specifications are here
| Material | Halogen-free polyolefin |
| Operating temperature range | -55℃ to 105℃ |
| standard | Passed the combustion test for materials used in railway vehicles |
| Standard Color | White (black is made to order) |
| characteristics | Test Method | characteristic values |
| Tensile strength | ASTM D2671 | 10.4Mpa |
| Growth rate | 200% | |
| Dielectric strength | ASTM D2671 | No destruction |
| AC2500V 60 seconds | ||
| Flammability | UL224 | VW-1 |
| volume resistivity | ASTM D876 | 10 to the power of 14 Ω.cm(min) |
| copper corrosive | UL224 | No corrosion |
| 158℃ 168 hours | ||
| water absorption | ASTM D570 | 0.5% |
The above data are typical values and not guaranteed values.
| Model number | Inner diameter D (mm) | Wall thickness T (mm) |
Packaging unit (m/reel) |
| ETC-2.0 | 2.0±0.2 | 0.35±0.05 | 200 |
| ETC-2.5 | 2.5±0.2 | ||
| ETC-3.0 | 3.0±0.2 | ||
| ETC-3.2 | 3.2±0.2 | ||
| ETC-3.5 | 3.5±0.2 | ||
| ETC-4.0 | 4.0±0.3 | ||
| ETC-4.2 | 4.2±0.3 | ||
| ETC-4.5 | 4.5±0.3 | ||
| ETC-5.0 | 5.0±0.3 | 100 | |
| ETC-5.5 | 5.5±0.3 | ||
| ETC-6.0 | 6.0±0.5 | ||
| ETC-6.5 | 6.5±0.5 | ||
| ETC-7.0 | 7.0±0.5 | 0.40±0.05 | |
| ETC-8.0 | 8.0±0.5 | ||
| ETC-8.5 | 8.5±0.5 | ||
| ETC-9.0 | 9.0±0.5 | ||
| ETC-10.0 | 10.0±0.5 | ||
| ETC-11.0 | 11.0±0.5 | 50 | |
| ETC-12.0 | 12.0±0.5 | ||
| ETC-13.0 | 13.0±0.5 | ||
| ETC-16.0 | 16.0±0.5 | 0.50±0.05 | |
| ETC-18.0 | 18.0±0.5 | ||
| ETC-20.0 | 20.0±0.5 | ||
| ETC-22.0 | 22.0±0.5 | ||
| ETC-23.0 | 23.0±0.5 | ||
| ETC-24.0 | 24.0±0.5 |
30 (ETC-25.0 only, 50m roll) |
|
| ETC-25.0 | 25.0±0.5 | ||
| ETC-26.0 | 26.0±0.5 | ||
| ETC-28.0 | 28.0±0.5 | ||
| ETC-30.0 | 30.0±0.5 |
* ETC-10 and larger sizes are made to order.
| Model number | 1 volume (m) | List price | 10m | 50m | 100m | 200m (Volume 1) |
| ETC-2.0 | 200 | 51 | 47 | 42 | 39 | 31 |
| ETC-2.5 | 200 | 59 | 54 | 50 | 44 | 36 |
| ETC-3.0 | 200 | 68 | 62 | 57 | 51 | 41 |
| ETC-3.2 | 200 | 70 | 64 | 59 | 53 | 42 |
| ETC-3.5 | 200 | 71 | 65 | 60 | 54 | 43 |
| ETC-4.0 | 200 | 75 | 70 | 63 | 58 | 46 |
| ETC-4.2 | 200 | 79 | 72 | 65 | 60 | 48 |
| ETC-4.5 | 200 | 84 | 77 | 71 | 64 | 51 |
| Model number | 1 volume (m) | List price | 10m | 50m | 100m (Volume 1) |
500m (Volume 5) |
| ETC-5.0 | 100 | 92 | 85 | 77 | 66 | 52 |
| ETC-5.5 | 100 | 95 | - | - | - | - |
| ETC-6.0 | 100 | 95 | 88 | 81 | 69 | 54 |
| ETC-7.0 | 100 | 96 | 88 | 81 | 70 | 54 |
| ETC-8.0 | 100 | 128 | - | - | - | - |
| ETC-8.5 | 100 | 131 | 121 | 110 | 95 | 74 |
| ETC-9.0 | 100 | 137 | 127 | 116 | 99 | 77 |
