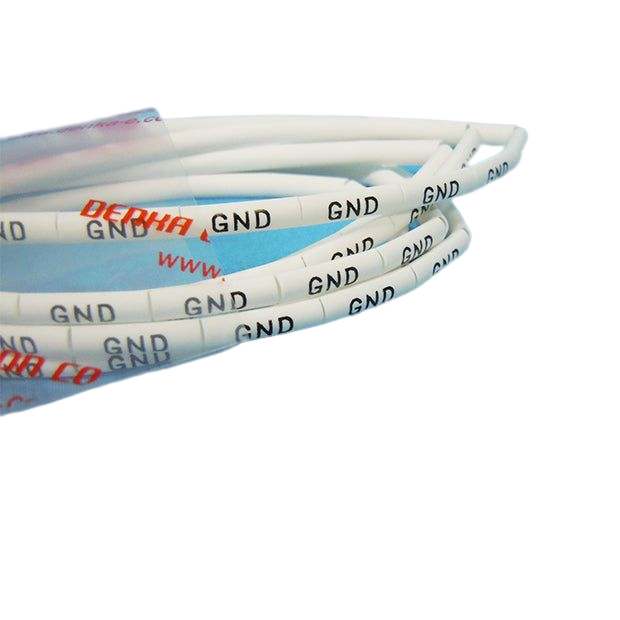

Halogen-free mark tube with custom character printing [ETCM]
$6.00
$7.00
Tax included.
Shipping calculated at checkout.
在庫: あり
納期: 1～3日以内に出荷
- Barcode:
This is a printing service for ETC tubes made of non-shrinkable polyolefin tubes.
■Features
- Since the printing is done on a no-marking tube (no product name, specifications, or other characters printed on the tube surface), the engraving stands out clearly.
- The engraved letters will not easily disappear.
- As it is a non-shrinking type, it is also suitable for insulating and protecting wires.
■ Recruitment history
・Vehicle-related business
■Sales
・This product can be purchased in units of 100 per bag.
■ Examples of made-to-order products
- Long or many characters
・Products with large inner diameters
・Printing of custom letters and marks
◆Click here for the catalogue
◆RoHS2 certificate is here
◆Other non-containing certificates can be found here
■ Stamping characters and length guidelines
・Please calculate with each character being 3mm wide.
・8mm → Up to 2 characters allowed
・10mm → Up to 3 characters
・15mm → Up to 5 characters
■How to specify printing
Please enter the characters printed on the mark tube in the inquiry field that appears when placing your order.
*In the case of the following conditions, a separate quote will be provided, so please contact us.
[Inner diameter 6.2φ or more / Tube length 20mm or more / Single unit / Number of characters 6 or more]
Please print out the quotation request form below and use it.
(PDF:76KB)
| Material | Halogen-free polyolefin |
| Specified temperature range | -55℃ to 105℃ |
| standard | Passed the combustion test for materials used in railway vehicles |
| Standard Color | white |
| characteristics | Test Method | characteristic values |
| Tensile strength | ASTM D2671 | 10.4Mpa |
| Growth rate | 200% | |
| Elongation after thermal degradation | ASTM D2671 | 100% |
| Tensile strength after thermal degradation | 158℃ 168 hours | Remaining rate 70% |
| thermal shock | ASTM D2671 | No cracks |
| 250℃ 4 hours | ||
| low temperature flexibility | ASTM D2671 | No cracks |
| -30℃ 1 hour | ||
| Dielectric strength | ASTM D2671 | No destruction |
| AC2500V 60 seconds | ||
| Flammability | UL224 | VW-1 |
| volume resistivity | ASTM D876 | 10 to the power of 14 Ω.cm(min) |
| copper corrosive | UL224 | No corrosion |
| 158℃ 168 hours | ||
| water absorption | ASTM D570 | 0.50% |
The above data are typical values and not guaranteed values.
*Please check the price list for standard printable sizes.
Sizes other than those in stock are made to order, so please contact us for details.
| Model number | Inner diameter D (mm) | Wall thickness T (mm) |
| ETCM-2.0 | 2.0±0.2 | 0.35±0.05 |
| ETCM-2.5 | 2.5±0.2 | |
| ETCM-3.0 | 3.0±0.2 | |
| ETCM-3.2 | 3.2±0.2 | |
| ETCM-3.5 | 3.5±0.2 | |
| ETCM-4.0 | 4.0±0.3 | |
| ETCM-4.2 | 4.2±0.3 | |
| ETCM-4.5 | 4.5±0.3 | |
| ETCM-5.0 | 5.0±0.3 | |
| ETCM-5.5 | 5.5±0.3 | |
| ETCM-6.0 | 6.0±0.5 | |
| ETCM-6.5 | 6.5±0.5 | |
| ETCM-7.0 | 7.0±0.5 | 0.40±0.05 |
| ETCM-8.0 | 8.0±0.5 | |
| ETCM-8.5 | 8.5±0.5 | |
| ETCM-9.0 | 9.0±0.5 | |
| ETCM-10.0 | 10.0±0.5 | |
| ETCM-11.0 | 11.0±0.5 | |
| ETCM-12.0 | 12.0±0.5 | |
| ETCM-13.0 | 13.0±0.5 | |
| ETCM-16.0 | 16.0±0.5 | 0.50±0.05 |
| ETCM-18.0 | 18.0±0.5 | |
| ETCM-20.0 | 20.0±0.5 | |
| ETCM-22.0 | 22.0±0.5 | |
| ETCM-23.0 | 23.0±0.5 | |
| ETCM-24.0 | 24.0±0.5 | |
| ETCM-25.0 | 25.0±0.5 | |
| ETCM-26.0 | 26.0±0.5 | |
| ETCM-28.0 | 28.0±0.5 | |
| ETCM-30.0 | 30.0±0.5 |
Unit: mm
| Model number x length | Inner diameter (φ) | Tube length (mm) | List price | 1 bag (100 tablets) |
| ETCM-2.0x8 | 2.0 | 8 | 891 | 743 |
| ETCM-2.0x10 | 2.0 | 10 | 891 | 743 |
| ETCM-2.0x15 | 2.0 | 15 | 891 | 743 |
| ETCM-2.5x8 | 2.5 | 8 | 891 | 743 |
| ETCM-2.5x10 | 2.5 | 10 | 891 | 743 |
| ETCM-2.5x15 | 2.5 | 15 | 891 | 743 |
| ETCM-3.0x8 | 3.0 | 8 | 773 | 644 |
| ETCM-3.0x10 | 3.0 | 10 | 773 | 644 |
| ETCM-3.0x15 | 3.0 | 15 | 773 | 644 |
| ETCM-3.2x8 | 3.2 | 8 | 773 | 644 |
| ETCM-3.2x10 | 3.2 | 10 | 773 | 644 |
| ETCM-3.2x15 | 3.2 | 15 | 773 | 644 |
| ETCM-3.5x8 | 3.5 | 8 | 773 | 644 |
| ETCM-3.5x10 | 3.5 | 10 | 773 | 644 |
| ETCM-3.5x15 | 3.5 | 15 | 773 | 644 |
| ETCM-4.0x8 | 4.0 | 8 | 891 | 743 |
| ETCM-4.0x10 | 4.0 | 10 | 891 | 743 |
| ETCM-4.0x15 | 4.0 | 15 | 891 | 743 |
| ETCM-5.0x8 | 5.0 | 8 | 990 | 825 |
| ETCM-5.0x10 | 5.0 | 10 | 990 | 825 |
| ETCM-5.0x15 | 5.0 | 15 | 990 | 825 |
| ETCM-5.5x8 | 5.5 | 8 | 990 | 825 |
| ETCM-5.5x10 | 5.5 | 10 | 990 | 825 |
| ETCM-5.5x15 | 5.5 | 15 | 990 | 825 |
| ETCM-6.0x8 | 6.0 | 8 | 1,188 | 990 |
| ETCM-6.0x10 | 6.0 | 10 | 1,188 | 900 |
| ETCM-6.0x15 | 6.0 | 15 | 1,188 | 900 |
Each bag contains 100 tablets. All prices are per bag. (excluding tax)
The tube will be completely cut.
Each bag can be engraved with one type of engraving. Please enter your engraving request in the inquiry field that appears when placing your order.
Please calculate with 3mm width per character.
Example: ETCM-2.0x8...For an inner diameter of 2.0φ x 8mm, the maximum number of characters is 2.
Please contact us for a separate quote for the following conditions:
[Inner diameter 6.2φ or more / Tube length 20mm or more / Single unit / Number of characters 9 or more]
