Halogen-free black heat shrink tubing [SETC-B]

Halogen-free black heat shrink tubing [SETC-B]

$4.00

Tax included. Shipping calculated at checkout.

在庫: あり

As of August 8th, the SETC-1.5B-200/SETC-2.0B-200 are out of stock, so delivery will take approximately one month.

納期: 1～3日以内に出荷

価格が0円と表示される製品のご購入は弊社までお問い合わせください。

商品についてお問い合わせはこちら

Barcode:

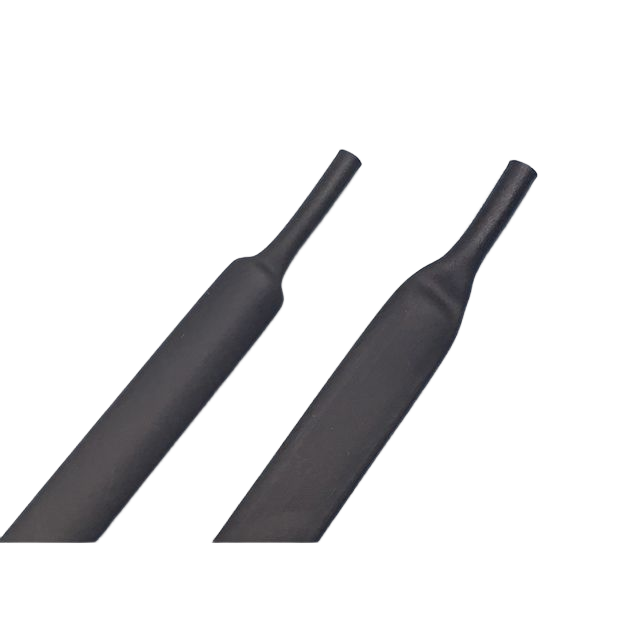

This is a black, halogen-free eco-friendly heat shrink tubing.

■Features
- No marking type heat shrink tubing with no UL number engraved, etc., so it can be clearly engraved.
- A heat shrink tube that is ideal for marking and insulating protection.
- The engraved letters will not easily disappear.
- A heat shrinkable tube that has passed UL224 VW-1 and railway vehicle material combustion tests.

■ Recruitment history
・Harness related and railway business related

Manufacturers	Situation before employment	Effects on recruitment
Connector Manufacturer	・From 2018 A connector manufacturer decided to use halogen-free heat shrink tubing. They were looking for flame-retardant heat shrink tubing that did not contain brominated flame retardants, but could not find anything that met the specifications.	Our STEC tubes are non-halogen type in both black and white, and come in a wide range of sizes.

*Please contact us for more detailed information on case studies and results.

■Sales
・This product is cut from a long product (reel product).

■ Examples of made-to-order products
・Large diameter products

◆Click here for the catalogue

◆Product selection table is here

◆ROHS2 certificate is here

◆Other non-containing certificates can be found here

◆ Packaging specifications are here

Material	Halogen-free polyolefin
standard	・UL224 VW-1 125℃ 600V (File No: E314714) - Products that have passed the combustion test for railway vehicle materials ・CSA
Full shrinkage temperature	100℃ (shrinkage starts at 70℃)
Operating temperature range	-55℃ to 105℃
Shrinkage rate	2:1
Standard Color	White/Black

characteristics	Test Method	characteristic values
Tensile strength	ASTM D 2671	>12Mpa
Growth rate	ASTM D 2671	≧400%
Elongation after thermal degradation	158℃ 168 hours	>200%
Tensile strength after thermal degradation	158℃ 168 hours	>11Mpa
Axial shrinkage	UL224	0±5%
Flammability	VW-1	Self-extinguishing in 30 seconds
Eccentricity	ASTM D 2671	>30%
volume resistivity	ASTM D 2671	>10 to the power of 14 Ω.cm
copper corrosive	UL224	Passed

*The above data are typical values and not guaranteed values.

熱収縮チューブ・SETCチューブサイズ

Model number	Before shrinkage		After shrinkage		Packaging unit m/1 reel
Model number	D inner diameter	T wall thickness	D1 inner diameter	T1 wall thickness	Packaging unit m/1 reel
SETC-1.5	1.5	0.25	0.75	0.42	200
SETC-2.0	2.0		1
SETC-2.5	2.5		1.25
SETC-3.0	3.0		1.5
SETC-3.5	3.5		1.75
SETC-4.0	4.0		2
SETC-5.0	5.0		2.5	0.51	100
SETC-6.0	6.0		3	0.54
SETC-7.0	7.0		3.5
SETC-8.0	8.0	0.3	4
SETC-9.0	9.0		4.5
SETC-10.0	10.0		5
SETC-11.0	11.0		5.5
SETC-12.0	12.0		6		50
SETC-13.0	13.0	0.35	6.5	0.62
SETC-16.0	16.0	0.35	8	0.62
SETC-18.0	18.0	0.4	9	0.75
SETC-20.0	20.0	0.4	10	0.85
SETC-25.0	25.0	0.45	12.5	0.85
SETC-30.0	30.0	0.45	15	0.85

Unit: mm
*Please check the price list for stock sizes.

Model number	Inner diameter before shrinkage (φ)	1 volume (m)	List price	10m	50m	200m (1 roll)
SETC-1.5B	1.5	200	54	48	45	35
SETC-2.0B	2.0	200	58	50	47	36
SETC-3.0B	3.0	200	61	57	53	42
SETC-4.0B	4.0	200	75	71	67	52

Model number	Inner diameter before shrinkage (φ)	1 volume (m)	List price	10m	50m	100m (1 roll)
SETC-5.0B	5.0	100	81	77	72	61
SETC-6.0B	6.0	100	92	84	79	67
SETC-8.0B	8.0	100	one two three	111	104	88
SETC-10.0B	10.0	100	146	130	122	103

*All products are cut from reels.
