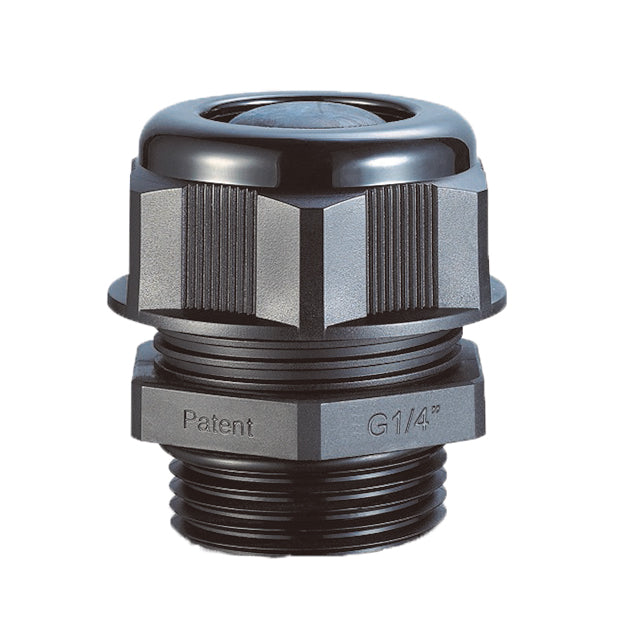

Nylon cable gland G(PF) screw [G-]
Nylon cable gland G(PF) screw [G-]

    Nylon cable gland G(PF) screw [G-]

    $10.00
    Tax included. Shipping calculated at checkout.
    在庫: あり
    As of August 8th, G1407/G1209B/G3808B/G10025B are out of stock and delivery will take approximately one month.
    納期: 1～3日以内に出荷
    価格が0円と表示される製品のご購入は弊社までお問い合わせください。
    商品についてお問い合わせはこちら
    • Barcode:

    Product overview

    High-performance cable gland

    ■Features
    -It meets the IP68/69K waterproof standard, so there is no impact on internal equipment.
    · Cables can be fastened quickly and securely by hand without the need for tools.
    -We offer a wide range of sizes and a wide variety of screw types (M screws, MG screws, PG screws, G screws, NPT screws).

    ■ Recruitment history
    -It is used in machines that require waterproofing and dustproofing, such as panels, outdoor communication devices, solar power generation systems, railways, ships, and machine tools.

    ■Sales

    Please contact us if you are purchasing more than 1,000 units.

    ■ Examples of made-to-order products
    ・Custom sizes, colors, and UL94V-0 are also available. Please contact us for details .

    Download materials

    ◆Click here for the catalogue

    ◆ROHS2 certificate can be found here

    Specifications

    Material Body: Nylon 66
    Seal washer: NBR
    Operating temperature range -40℃ to 100℃
    standard UL94 V-2
    CE
    IP68/IP69K
    RoHS
    REACH
    color Black/Gray

    size

    ナイロンケーブルグランドG(PE) サイズ

    ナイロンケーブルグランドG(PE) サイズ

    Model Screw type D1 Applicable wire H GL Spanner Size
    ash black
    G1407 G1407B G/(PF)1/4” 3-6.5 twenty one 9 15
    G1405 G1405B G/(PF)1/4” 2-5 twenty one 9 15
    G3808 G3808B G/(PF)3/8” 4-8 twenty two 10 19/22
    G3806 G3806B G/(PF)3/8” 2-6 twenty two 10 19/22
    G1212 G1212B G/(PF)1/2” 6-12 26 10 twenty four
    G1209 G1209B G/(PF)1/2” 5-9 26 10 twenty four
    G1214 G1214B G/(PF)1/2” 10-14 28 10 27
    G3418 G3418B G/(PF)3/4” 13-18 31 15 33
    G3416 G3416B G/(PF)3/4” 9-16 31 15 33
    G10025 G10025B G/(PF)1” 18-25 39 15 42
    G10020 G10020B G/(PF)1” 13-20 39 15 42
    G11432 G11432B G/(PF)1 1/4” 22-32 48 15 53
    G11426 G11426B G/(PF)1 1/4” 20-26 48 15 53
    G11238 G11238B G/(PF)1 1/2” 32-38 49 20 60
    G11231 G11231B G/(PF)1 1/2” 25-31 49 20 60
    G20044 G20044B G/(PF)2” 37-44 50 20 65
    G20035 G20035B G/(PF)2” 29-35 50 20 65

    Unit: mm

    Price List

    *Please contact us for the price, lot size, etc. of this product.
