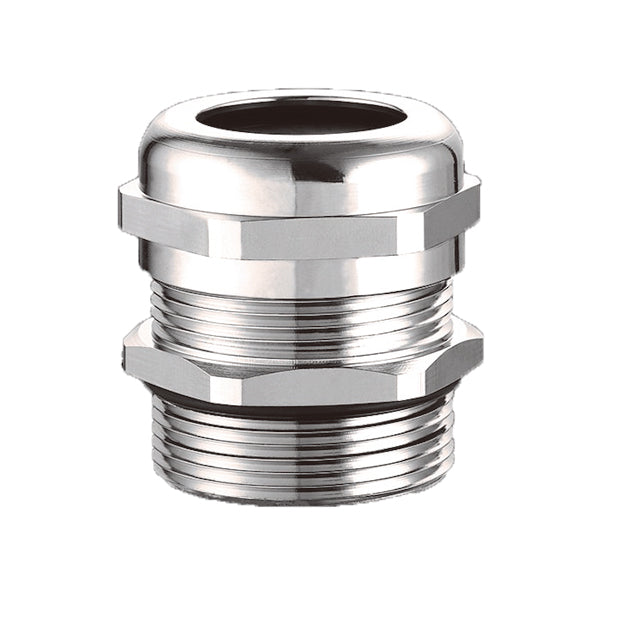

Metal cable gland G(PF) screw [G-]

    Metal cable gland G(PF) screw [G-]

    $41.00
    Tax included. Shipping calculated at checkout.
    在庫: あり
    10/3時点　G1209BRは欠品中のため納期1か月程度となります。
    納期: 1～3日以内に出荷
    価格が0円と表示される製品のご購入は弊社までお問い合わせください。
    商品についてお問い合わせはこちら
    • Barcode:

    High performance cable gland.

    ■Features
    - It meets the IP68/69K waterproof standard, so there is no impact on internal equipment. Explosion-proof standard certified products are also available. Waterproof, dustproof, and moisture-proof, so you can use it with confidence.
    -Because it is a metal type, it has excellent chemical resistance, weather resistance, and impact resistance.
    -We offer a wide range of sizes and a wide variety of screw types (M screws, MG screws, PG screws, G screws, NPT screws).

    ■ Recruitment history
    - Machines that require waterproofing and dustproofing, such as panels, outdoor communication devices, solar power generation, railways, ships, and machine tools

    ■Sales
    ・Please contact us .

    ■ Examples of made-to-order products
    - Custom sizes, colors, and UL94V-0 are also available.

    ◆Click here for the catalogue

    Material Body: Brass, nickel plated
    Seal washer: NBR
    Operating temperature range -40℃ to 100℃
    standard UL94 V-2
    CE
    IP68/IP69K
    RoHS
    REACH
    color silver


    メタルケーブルグランドG(PE) サイズ

    メタルケーブルグランドG(PE) サイズ

    Model Screw type D1 Applicable wire H GL Spanner Size
    G1407BR G/(PF)1/4” 3-6.5 19

    8

    14
    G1405BR G/(PF)1/4” 2-5 19 8 14
    G3808BR G/(PF)3/8” 4-8 twenty one 9 19
    G3806BR G/(PF)3/8” 2-6 twenty one 9 19
    G1212BR G/(PF)1/2” 6-12 twenty three 9 twenty two
    G1209BR G/(PF)1/2” 5-9 twenty three 9 twenty two
    G1214BR G/(PF)1/2” 10-14 twenty four 9 twenty four
    G3418BR G/(PF)3/4” 13-18 twenty five 12 30
    G3416BR G/(PF)3/4” 9-16 twenty five 12 30
    G10025BR G/(PF)1” 18-25 31 12 40
    G10020BR G/(PF)1” 13-20 31 12 40
    G11432BR G/(PF)1 1/4” 22-32 37 15 50
    G11426BR G/(PF)1 1/4” 20-26 37 15 50
    G11238BR G/(PF)1 1/2” 32-38 37 15 57
    G11231BR G/(PF)1 1/2” 25-31 37 15 57
    G20044BR G/(PF)2” 37-44 38 15 64
    G20035BR G/(PF)2” 29-35 38 15 64
    Unit: mm
