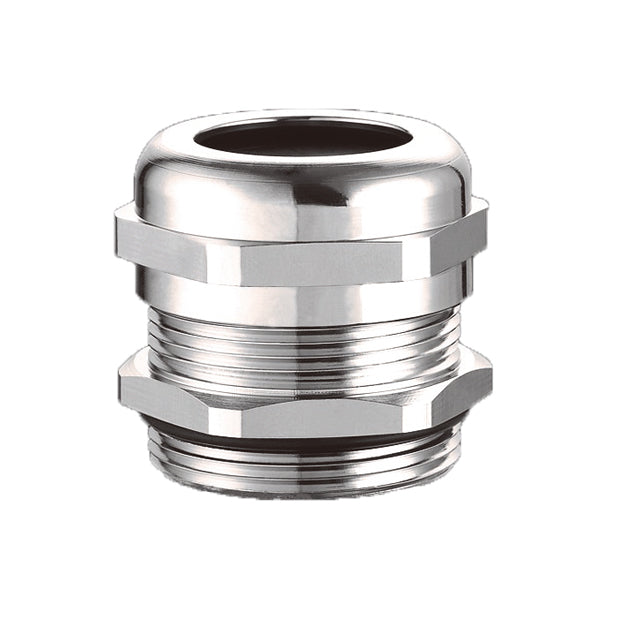

Metal cable gland M screw [M-]

$31.00

Tax included. Shipping calculated at checkout.

在庫: あり

As of June 25th, M4033BL is out of stock, so delivery will take approximately one month.

納期: 1～3日以内に出荷

価格が0円と表示される製品のご購入は弊社までお問い合わせください。

商品についてお問い合わせはこちら

Barcode:

High performance cable gland.

■Features
- It meets the IP68/69K waterproof standard, so there is no impact on internal equipment. Explosion-proof standard certified products are also available. Waterproof, dustproof, and moisture-proof, so you can use it with confidence.
-Because it is a metal type, it has excellent chemical resistance, weather resistance, and impact resistance.
-We offer a wide range of sizes and a wide variety of screw types (M screws, MG screws, PG screws, G screws, NPT screws).

■ Recruitment history
- Machines that require waterproofing and dustproofing, such as panels, outdoor communication devices, solar power generation, railways, ships, and machine tools

■Sales
・Please contact us .

■ Examples of made-to-order products
- Custom sizes, colors, and UL94V-0 are also available.

Material	Body: Brass, nickel-plated Seal washer: NBR
Operating temperature range	-40℃ to 100℃
standard	UL94 V-2 CE IP68/IP69K RoHS REACH
color	silver

Model	Screw type D1	Applicable wire	H	GL	Spanner Size
M1207BR	M 12× 1.5	3-6.5	19	6,5	14
M1205BR	M 12× 1.5	2-5	19	6,5	14
M1608BR	M 16× 1.5	4-8	twenty one	6	19
M1606BR	M 16× 1.5	2-6	twenty one	6	19
M1610BR	M 16× 1.5	5-10	twenty two	6	20
M2012BR	M 20× 1.5	6-12	twenty three	6	twenty two
M2009BR	M 20× 1.5	5-9	twenty three	6	twenty two
M2014BR	M 20× 1.5	10-14	twenty four	6	twenty four
M2518BR	M 25× 1.5	13-18	twenty five	7	30
M2516BR	M 25× 1.5	9-16	31	7	30
M3225BR	M 32× 1.5	18-25	31	8	40
M3220BR	M 32× 1.5	13-20	37	8	40
M4032BR	M 40× 1.5	22-32	37	8	50
M4026BR	M 40× 1.5	20-26	37	8	50
M5038BR	M 50× 1.5	32-38	37	9	57
M5031BR	M 50× 1.5	25-31	37	9	57
M6344BR	M 63× 1.5	37-44	38	10	68
M6335BR	M 63× 1.5	29-35	38	10	68

Unit: mm
