Strong adhesive cable tie fastener [DKK]

Strong adhesive cable tie fastener [DKK]

$2.00

Tax included. Shipping calculated at checkout.

在庫: あり

納期: 1～3日以内に出荷

価格が0円と表示される製品のご購入は弊社までお問い合わせください。

商品についてお問い合わせはこちら

Barcode:

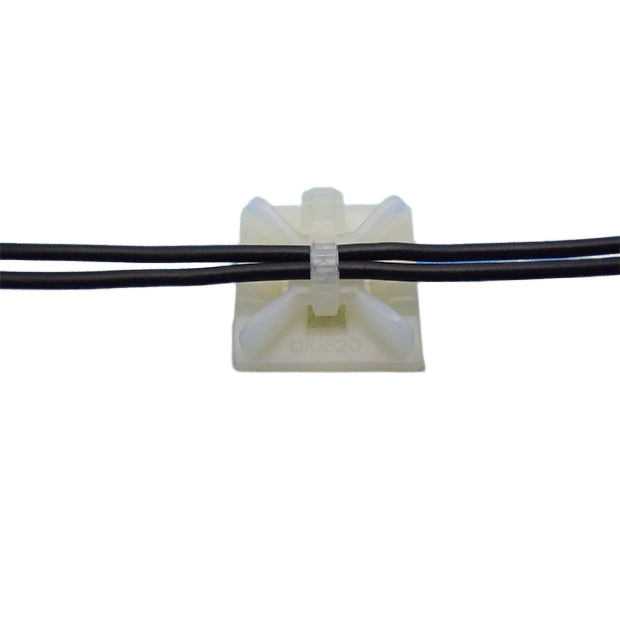

A cable tie fixing device that uses adhesive tape.

■Features
- It is easy to attach to a housing etc. as it is adhesive fixed.

- A wiring fixing device that does not require drilling or screwing.
-There are two types : one that allows cable ties to be inserted from all four directions without worrying about the direction , and one with two holes that is ideal for indicating direction .

- It has the strongest adhesive strength in the industry.

■Recruitment

・Electrical/communications construction (maintenance of electrical equipment in homes/buildings and factory equipment)

・Fixing cables and wiring inside the switchboard

■Sales
・This product can be purchased in quantities of 10 or more.

■ Examples of made-to-order products
- Products with different widths and heights
- Products with different screw hole diameters

◆Click here for the catalogue

◆RoHS certificate is here

Material	66 nylon + polyethylene foam adhesive tape
standard	UL94 V-2 (main body) RoHS
Applicable screws	M3 to M5
Standard Color	milky white

Model number	W	W1	Mounting Hole Diameter
DKK-12	12.5	12.5	-
DKK-20-1	20.0	20.0	-
DKK-20	20.0	20.0	3.1
DKK-30	28.1	28.1	4.2
DKK-40	38.4	38.4	4.7

Unit: mm
*DKK-20-1 is a one-hole (two-way) type. (The two sizes DKK-12 and 20-1 do not have mounting holes.)

Model number	Diameter (mm)	List price	10 pieces	50 pieces	100 pieces	500 pieces
DKK-12	12.5 x 12.5	18	17.6	15.8	13.5	11.7
DKK-20-1	19×19	16	15.6	14	12	10.4
DKK-20	19×19	18	17.6	15.8	13.5	11.7
DKK-30	28×28	42	41	36.8	31.5	27.3
DKK-40	38.1×38.1	88	85.8	77	66	57.2

All prices are per item (excluding tax)
