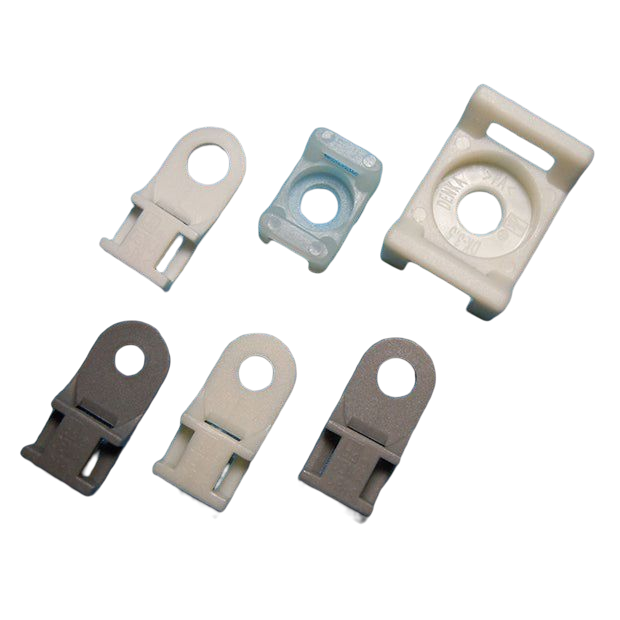

Screw-type cable tie fixing device [DK]
$6.00
$7.00
Tax included.
Shipping calculated at checkout.
在庫: あり
納期: 1～3日以内に出荷
- Barcode:
Screw-type cable tie fixing device
■Features
- Passed UL94-V0 and vehicle material combustion tests, so it can be used in a variety of ways.
- There are a wide variety of types available , and they are compatible with cable ties of various widths.
- It can be secured with screws, making it more firmly fixed inside the panel .
■ Recruitment history
-It is also used in distribution boards, railway vehicle equipment, etc.
■Sales
・This product can be purchased in units of 50.
■ Examples of made-to-order products
・Injection molded product using 66 nylon
- Products with different widths and screw hole diameters
◆Click here for the catalogue
◆RoHS2 certificate is here
◆Other non-containing certificates can be found here
| Material | 66 nylon |
| standard |
UL94 V-0 (DK-3 only V-2) Passed the combustion test for materials used in railway vehicles (DK-1.5, DK-1-40) |
| Applicable screws | M3 to M5 |
| Model number | H | W | L | T | D | Standard Color | grade |
| DK-1-35 | 4.5 | 9.6 | 20.5 | 5 | 3.5 | Light gray | UL94VO |
| DK-1-40 | 4.5 | 9.6 | 20.5 | 5 | 4 | white | UL94VO |
| DK-1.5 | 4.5 | 9.6 | 20.5 | 5 | 4.5 | Light gray | UL94VO |
| DK-2 | 4.5 | 9.6 | 20.5 | 5 | 5.1 | white | UL94VO |
| DK-3 | 6.6 | 9.7 | 15.2 | 5.2 | 3.5 | milky white | UL94V2 |
| DK-3.5 | 9.6 | 16 | 22.5 | 8.6 | 5.3 | white | UL94VO |
Unit: mm
| Model number | Screw hole diameter (mm) | List price | 50 pieces | 100 pieces | 500 pieces |
| DK-1-35 | 3.5 | 18 | 15 | 11 | 10 |
| DK-1-40 | 4.0 | 18 | 15 | 11 | 10 |
| DK-1.5 | 4.5 | 18 | 15 | 11 | 10 |
| DK-2 | 5.1 | 18 | 15 | 11 | 10 |
| DK-3 | 3.5 | twenty one | - | - | - |
| DK-3.5 | 5.3 | 26 | twenty two | 16 | 15 |
All prices are per item (excluding tax) ⇒How to read the price list
Available for purchase in units of 50.
*Once the DK-3 is sold out, it will be made to order.
