Ultra-heat resistant cable ties [DK-EXH]

Ultra-heat resistant cable ties [DK-EXH]

$2.00

Tax included. Shipping calculated at checkout.

在庫: あり

納期: 1～3日以内に出荷

価格が0円と表示される製品のご購入は弊社までお問い合わせください。

商品についてお問い合わせはこちら

Barcode:

↓Select the thumbnail of the item you want to view and you will be taken to the respective data.

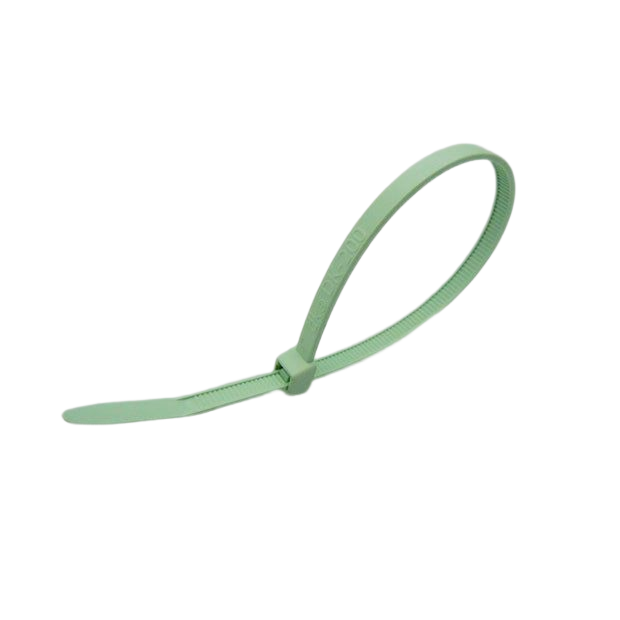

Ultra heat-resistant cable ties

■Features
- Has better heat dissipation properties than metal cable ties.
- The melon green color makes it easy to differentiate from regular cable ties.
- Please also use the ultra-heat resistant screw-type cable tie fastener .
・Our products include It is engraved with the following.

■ Recruitment history
- Heat-resistant cable ties for use around automobile engines
- Cable ties around the motors of factory automation equipment
- Wiring bundles near overheating parts around the heater of the outdoor unit (outdoor unit)
・Power plants, ships, agricultural machinery, railways, etc.

Manufacturers	Situation before employment	Effects on recruitment
Automatic conveyor	・From 2010 A manufacturer of automatic conveying equipment requires heat-resistant specifications for harnesses near motors. As the number of pieces used was extremely large, expensive materials such as fluororesin were avoided when considering materials.	Our DK-EXH uses 46 nylon, which allows wiring to be secured in environments where temperatures exceed 100°C, at less than one-fifth the price of fluororesin.

Material	46 nylon
Operating temperature range	-40 to 150°C (180°C for 12 hours)
standard	UL 94 V-0
Standard Color	Melon Green

Model number	L	L1	W	T	T1	D	Tensile strength kg
DK-100EXH	100	80	2.5	1.1	0.5	twenty three	8
DK-150EXH	151	one two three	3.5	1.2	0.6	34	13
DK-200EXH	200	175	4.8	1.4	0.8	48	16
DK-250EXH	250	200	5.0	1.5	0.9	65	twenty two

Unit: mm

Model number	List price	10 pieces	50 bottles	100 bottles	500 bottles	1,000 bottles
DK-100EXH	twenty five	twenty two	twenty one	19	18	17
DK-150EXH	34	30	28	26	twenty four	twenty three
DK-200EXH	88	42	40	37	35	32
DK-250EXH	158	76	72	67	63

All prices are per bottle (excluding tax) ⇒How to read the price list
