![Vinyl Tube Color [TB-Color]](http://denka-e.myshopify.com/cdn/shop/files/94f5c91fa63d1f46d681eda719e18766_35140e9b-10e1-4f50-8f89-924bfb0a273e_1024x1024.png?v=1743572698)

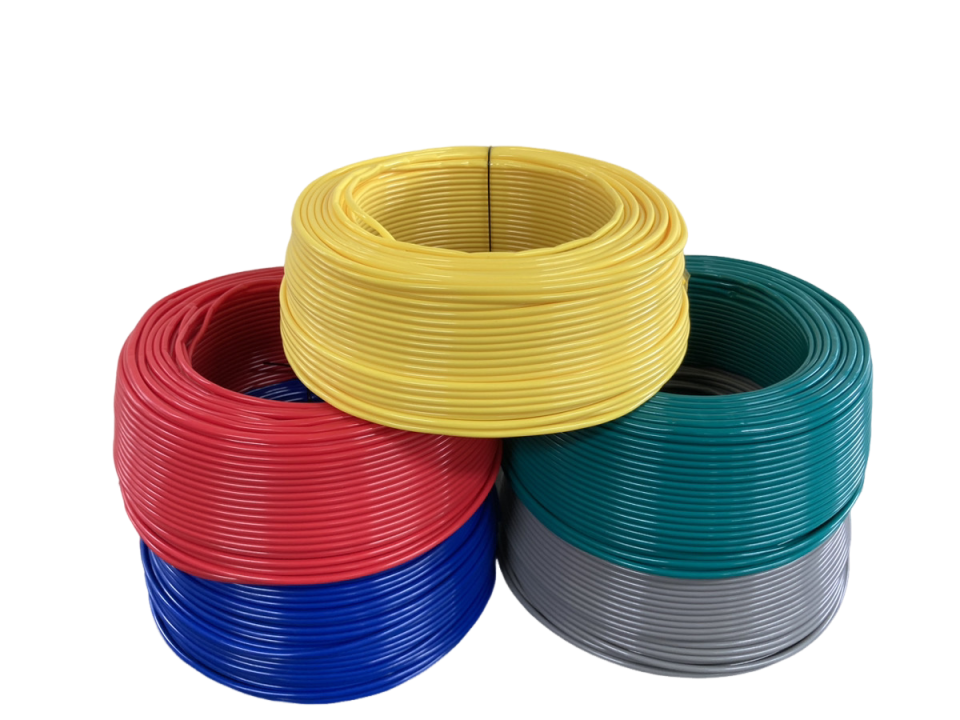

Vinyl Tube Color [TB-Color]
$10.00
$45.00
Tax included.
Shipping calculated at checkout.
在庫: あり
Made to order, all sizes take approximately 2 weeks to deliver
納期: 1～3日以内に出荷
- Barcode:
↓Select the thumbnail of the item you want to view and you will be taken to the respective data.
Denka Electron Vinyl Tube (Color)
■Features
- ROHS2 compliant PVC tube color type.
■Sales
・1 roll is 100m or more, delivery time is about 2 weeks.
・Red, blue, yellow, green and grey wires from 2φ to 10φ can be ordered from 1 roll.
White vinyl tubes are available here
Click here for transparent vinyl tubes
Black vinyl tubes are available here
◆Product selection table is here
◆ROHS2 certificate is here
◆Other non-containing certificates can be found here
| Material | PVC |
| standard | JISC2133 compliant |
| Operating temperature range | -20 to 60°C |
| Rated voltage | 300V |
| Flame retardant | Equivalent to UL94HB |
| item | Test Method | characteristics |
| Low temperature bending | JIS C-2133 12 | No cracks on the surface |
| Tensile strength | JIS C-2133 13 | >10.4MPa |
| stretch | JIS C-2133 13 | >100% |
| Breakdown voltage | JIS C-2133 15.1 | 2500V or more |
| Withstand voltage | JIS C-2133 15.2 | Withstands 2500V for 1 minute |
| Oil resistance | JISK6723 | 70℃X4 hours 85% or more |
| Volumetric efficiency | JIS C-2133 17 | >10^8 Ω.m |
| Inner diameter D | Thick T | Tolerance |
Packing unit (volume/m) |
|
| Inner diameter | Wall thickness | |||
| 2.0 | 0.3 | ±0.15 | ±0.07 | 100 |
| 2.5 | 0.3 | ±0.15 | ±0.07 | 100 |
| 3.0 | 0.3 | ±0.15 | ±0.07 | 100 |
| 3.2 | 0.4 | ±0.25 | ±0.07 | 100 |
| 3.5 | 0.4 | ±0.25 | ±0.07 | 100 |
| 4.0 | 0.4 | ±0.25 | ±0.07 | 100 |
| 5.0 | 0.4 | ±0.25 | ±0.07 | 100 |
| 6.0 | 0.4 | ±0.3 | ±0.07 | 100 |
| 8.0 | 0.54 | ±0.3 | ±0.07 | 100 |
| 10.0 | 0.5 | ±0.5 | ±0.07 | 100 |
Unit: mm
| Model number | Inner diameter (φ) | 1 volume (m) | List price | 1 roll (100m) |
| TB-2.0C(R,BL,Y,GY,G) | 2.0 | 100 | 15 | 13 |
| TB-2.5C(R,BL,Y,GY,G) | 2.5 | 100 | 17 | 15 |
| TB-3.0C(R,BL,Y,GY,G) | 3.0 | 100 | twenty three | twenty one |
| TB-3.2C(R,BL,Y,GY,G) | 3.2 | 100 | twenty five | twenty three |
| TB-3.5C(R,BL,Y,GY,G) | 3.5 | 100 | 27 | twenty five |
| TB-4.0C(R,BL,Y,GY,G) | 4.0 | 100 | 32 | 28 |
| TB-5.0C(R,BL,Y,GY,G) | 5.0 | 100 | 40 | 35 |
| TB-6.0C(R,BL,Y,GY,G) | 6.0 | 100 | 45 | 41 |
| TB-8.0C(R,BL,Y,GY,G) | 8.0 | 100 | 60 | 54 |
All prices are per meter (excluding tax) ⇒How to read the price list
Sizes not listed are made to order.
