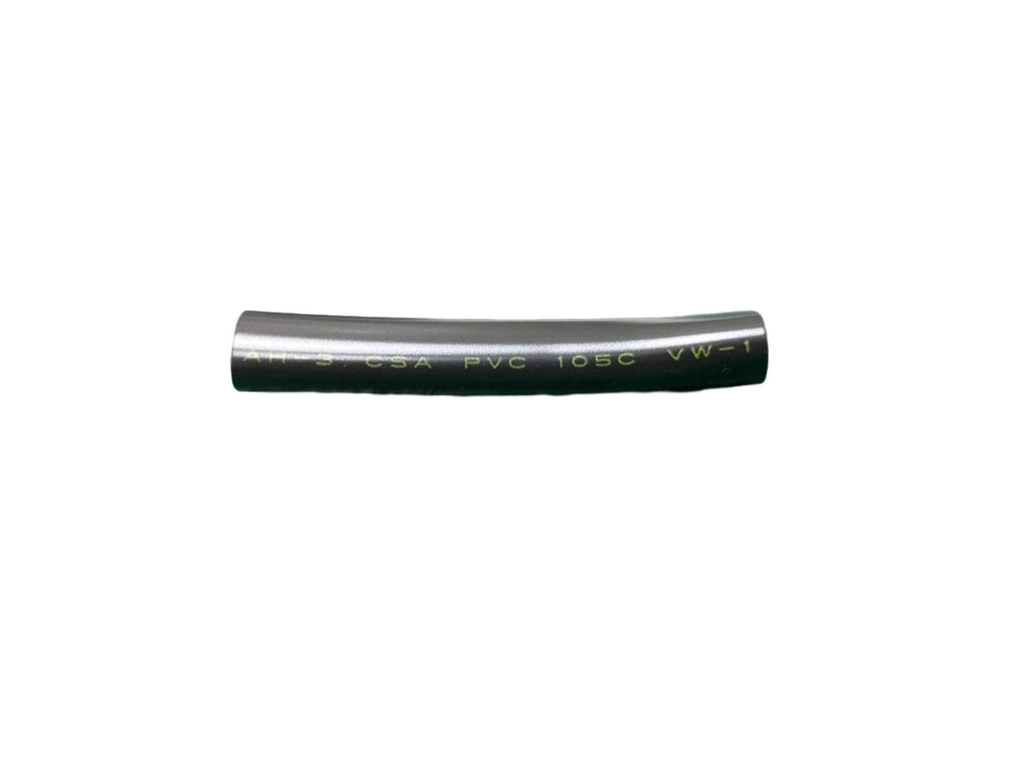

UL vinyl tube [AH]
UL vinyl tube [AH]

    UL vinyl tube [AH]

    $21.00
    Tax included. Shipping calculated at checkout.
    在庫: あり
    納期: About a week
    価格が0円と表示される製品のご購入は弊社までお問い合わせください。
    商品についてお問い合わせはこちら
    • Barcode:

    Product overview

    UL standard wire protection tube

    Please specify the color when ordering

    Download materials

    ◆Click here for the catalogue

    ◆Product selection table is here

    Specifications

    Material PVC
    standard UL 224 VW-1, CSA C22.2
    Operating temperature range -20 to 105°C
    Rated voltage 300V (AH-3) / 600V (AH-6)
    Standard Color Black White Transparent

    *Please contact us for other colors.

    data

    Item Standard values ​​(UL/CSA) Performance Value Test conditions
    Tensile strength (MPa) 10.4 or higher 17.0 or higher -
    stretch(%) Over 100 Over 250
    Withstand voltage 2,500V for 1 minute or more 10,000V for 1 minute or more -
    After heat aging tensile strength 7.4MPa or more 15.0 MPa or more 136℃
    7 days
    stretch Over 100% Over 200%
    Withstand voltage 2,500V for 1 minute or more 10,000V for 1 minute or more
    copper stability Elongation 100% or more Elongation: 200% or more
    flexibility No cracks or permanent deformation No abnormalities
    volume resistivity 10 to the power of 10 Ω-cm
    End     		10 to the power of 12 Ω-cm
    End     		-
    Flame retardant VW-1 VW-1 -
    Low temperature bending No cracks No cracks -30℃
    1 hour
    Shrinkage rate (%) ±5 4.0 or below 100℃
    2 hours

    *The above data are typical values ​​and not guaranteed values.

    size

    size Inner diameter D Inner diameter tolerance Cat,No.
    AH-6     		Cat,No.
    AH-3     		Volume 1
    600V 300V L(m)
    Thick T
    AWG-24 0.55 ±0.1 0.60 0.40 300
    AWG-22 0.65 ±0.1 0.60 0.40 300
    AWG-20 0.85 ±0.1 0.60 0.40 300
    AWG-19 0.9 ±0.1 0.60 0.40 300
    AWG-18 1.0 ±0.15 0.60 0.40 300
    AWG-17 1.2 ±0.15 0.62 0.40 300
    AWG-16 1.3 ±0.15 0.62 0.40 300
    AWG-15 1.5 ±0.15 0.62 0.40 300
    AWG-14 1.7 ±0.15 0.62 0.40 300
    AWG-13 1.9 ±0.2 0.62 0.40 300
    AWG-12 2.1 ±0.2 0.62 0.40 300
    AWG-11 2.4 ±0.2 0.62 0.40 300
    AWG-10 2.7 ±0.2 0.62 0.50 300
    AWG-9 3.0 ±0.25 0.62 0.50 300
    AWG-8 3.3 ±0.25 0.62 0.50 300
    AWG-7 3.7 ±0.25 0.62 0.50 300
    AWG-6 4.2 ±0.3 0.62 0.50 300
    AWG-5 4.7 ±0.3 0.62 0.50 300
    AWG-4 5.3 ±0.3 0.62 0.50 300
    AWG-3 5.9 ±0.3 0.62 0.50 300
    AWG-2 6.6 ±0.3 0.62 0.50 200
    AWG-1 7.4 ±0.35 0.62 0.50 200
    AWG-0 8.3 ±0.35 0.62 0.50 200
    5/16” 8.0 ±0.35 0.62 - 200
    6/16” 9.5 ±0.35 0.62 - 200
    7/16” 11.1 ±0.35 0.68 - 200
    8/16” 12.7 ±0.35 0.68 - 200
    9/16” 14.3 ±0.4 0.80 - 100
    10/16” 16.0 ±0.4 0.80 - 100
    12/16” 19.0 ±0.4 0.90 - 100
    14/16” 22.0 +0.7, -0.5 0.90 - 50
    16/16” 25.0 +0.7, -0.5 0.90

    Unit: mm

    Price List

    Model number 1 roll (300m)
    AH-3-AWG-24 9
    AH-3-AWG-22 10
    AH-3-AWG-20 13
    AH-3-AWG-19 13
    AH-3-AWG-18 14
    AH-3-AWG-17 14
    AH-3-AWG-16 15
    AH-3-AWG-15 17
    AH-3-AWG-14 18
    AH-3-AWG-13 19
    AH-3-AWG-12 twenty two
    AH-3-AWG-11 twenty four
    AH-3-AWG-10 twenty five
    AH-3-AWG-9 29
    AH-3-AWG-8 30
    AH-3-AWG-7 33
    AH-3-AWG-6 37
    AH-3-AWG-5 42
    AH-3-AWG-4 45
    AH-3-AWG-3 50
    Model number 1 roll (200m)
    AH-3-AWG-2 49
    AH-3-AWG-1 55
    AH-3-AWG-0 59
    Model number 1 roll (300m)
    AH-6-AWG-24 15
    AH-6-AWG-22 18
    AH-6-AWG-20 20
    AH-6-AWG-19 20
    AH-6-AWG-18 twenty two
    AH-6-AWG-17 twenty five
    AH-6-AWG-16 27
    AH-6-AWG-15 29
    AH-6-AWG-14 33
    AH-6-AWG-13 35
    AH-6-AWG-12 38
    AH-6-AWG-11 38
    AH-6-AWG-10 39
    AH-6-AWG-9 42
    AH-6-AWG-8 43
    AH-6-AWG-7 45
    AH-6-AWG-6 47
    AH-6-AWG-5 50
    AH-6-AWG-4 57
    AH-6-AWG-3 60
    Model number 1 roll (200m)
    AH-6-AWG-2 69
    AH-6-AWG-1 74
    AH-6-AWG-0 83
    AH-6-5/16” 88
    AH-6-6/16” 94
    AH-6-7/16” 112
    AH-6-8/16” 124
    Model number 1 roll (100m)
    AH-6-9/16” 178
    AH-6-10/16” 202
    AH-6-12/16” 295
    Model number 1 roll (50m)
    AH-6-14/16” 388
    AH-6-16/16” 423

    All prices are per meter (excluding tax) ⇒How to read the price list
    Tube standard color: White UL standard marking: Black printing
    Sold in units of one volume.
    There are two types: AH-3 (300V) and AH-6 (600V). Please see the size chart .
    Delivery time is approximately 2 to 3 weeks.
