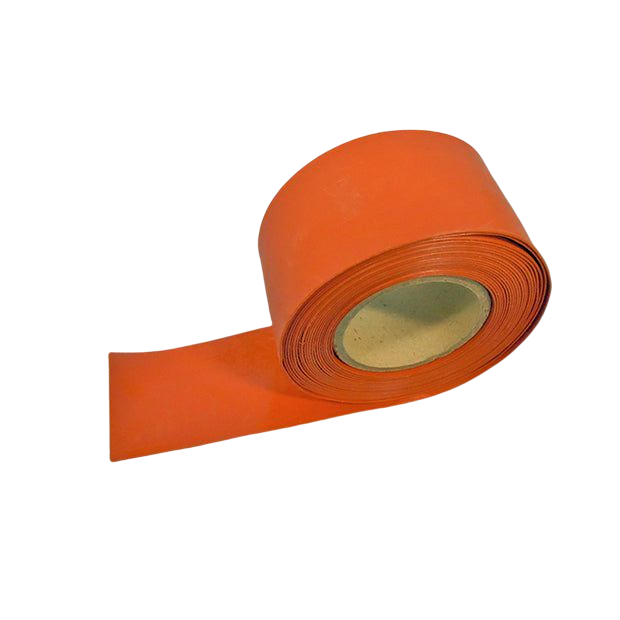

Self-adhesive heat shrink tape [HOLT]
$0.00
Tax included.
Shipping calculated at checkout.
在庫: あり
納期: About a month
- Barcode:
High voltage heat seal tape
■Features
-Double construction, insulator and high-temperature melt adhesive provide effective insulation and shock protection for busbars up to 36KV.
- It is highly flexible and easy to install.
- The tape can be easily removed when performing inspection or maintenance.
| Material | Crosslinked Polyolefin |
| Full shrinkage temperature | 100℃ |
| Operating temperature range | -55 to 105°C |
| Standard Color | Reddish brown |
| characteristics | Test Method | characteristic values |
| Tensile strength | ASTM D 2671 | ≧11.8MPa |
| Growth rate | ASTM D 2671 | ≧550% |
| Tensile strength after thermal degradation | 158℃, 168 hours | >10MPa |
| Elongation after thermal degradation | 158℃, 168 hours | >450% |
| Flammability | ASTM D 2671 | Self-digestion in 60 seconds |
| Dielectric strength | IEC 243 | ≧20KV/mm |
| volume resistivity | IEC 93 | 10 to the power of 13 Ωcm |
| copper corrosive |
ASTM D 2671/ 120℃, 168 hours |
No corrosion |
| water absorption |
ISO 62/23℃ 14 days |
<0.5% |
| dielectric constant | IEC 250 | ≦3.5 |
| low temperature flexibility |
ASTM D 2671 -40℃, 4 hours |
No destruction |
| Model number | Size (mm) |
Packaging unit (m) m/volume |
|
| width | Wall thickness | ||
| HOLT-25 | twenty five | 1.0±0.1 | 5 or 10 |
| HOLT-50 | 50 | ||
*Please contact us for the price, lot size, etc. of this product.
