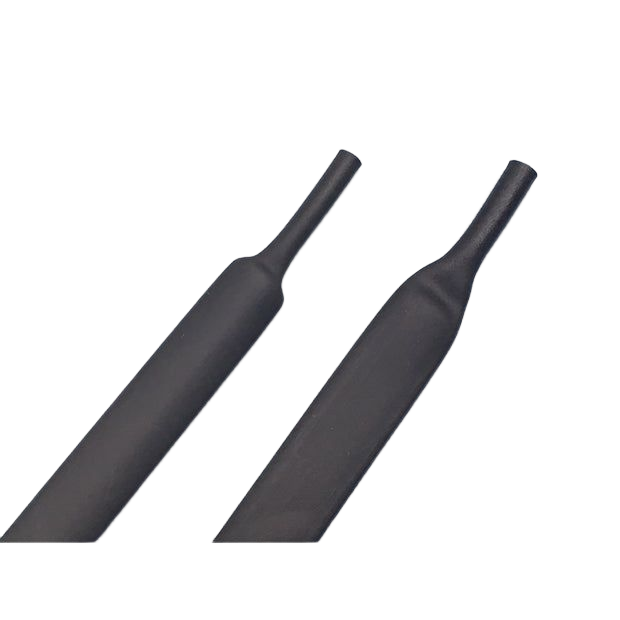

Thin-walled heat shrink tubing with a shrink ratio of 1/3 [CCS]
$777.00
Tax included.
Shipping calculated at checkout.
在庫: あり
納期: 1～3日以内に出荷
- Barcode:
Ultra-flexible, thin-walled 3:1 heat shrink tubing
■Features
- Excellent flame retardancy, chemical resistance, and weather resistance, and begins to shrink at a lower temperature than SZF2.
-This heat shrink tubing has excellent physical, chemical, and electrical properties, and prevents copper corrosion and insulates and protects electrical components.
- The shrinkage ratio is 3:1, so it can protect objects with many bumps and grooves.
*Can be made in specified colors.
[Colors] Black, red, yellow, green, blue, transparent
◆Click here for the catalogue
◆ROHS2 certificate is here
| Material | Polyolefin |
| Full shrinkage temperature | 100℃ |
| Operating temperature range | -55 to 125°C |
| standard | UL 224 VW-1, 125℃ 600V, [FileNo:E314714] |
| Shrinkage rate | 3:1 |
| Standard Color | Black, red, yellow, green, blue, transparent |
| characteristics | Test Method | characteristic values |
| Tensile strength | ASTM D2671 | ＞14MPa |
| Growth rate | ASTM D2671 | ＞500% |
| Axial shrinkage | UL224 | 0±5% |
| Eccentricity | UL224 | 30% |
| Tensile strength after thermal degradation | ASTM D2671/175℃, 168hrs. | 12 MPa |
| Elongation after thermal degradation | ASTM D2671/175℃, 168hrs. | 350% |
| Flammability |
UL224, VW-1 SAE-AMS-DTL-23053/5 |
Pass |
| thermal shock | ASTM D2671/250℃, 4 hours | No cracks |
| Cold bending | ASTM D2671/-55℃, 4 hours | No cracks |
| Dielectric strength | ASTM D150 | 20KV/mm |
| volume resistivity |
ASTM D2671 (AC 2500V, 1 min.) |
1014Ω.cm |
| Copper Stability | UL224 | Pass |
| copper corrosive | UL224 | Pass |
| water absorption | ASTM D570 | 0.15% |
*The above data are typical values and not guaranteed values.
*Please note that D indicates the inner diameter of the tube, not the folded diameter.
| Model number | Before shrinkage | After shrinkage | Packaging unit | |
| D Inner diameter | D1 Inner diameter | T Thickness | m/volume | |
| CCS-1.5 | 1.6 | 0.5 | 0.45 | 200 |
| CCS-3.0 | 3.2 | 1.0 | 0.55 | 200 |
| CCS-4.5 | 4.8 | 1.5 | 0.6 | 100 |
| CCS-6.0 | 6.4 | 2.0 | 0.65 | 100 |
| CCS-9.0 | 9.5 | 3.0 | 0.75 | 100 |
| CCS-12.0 | 12.7 | 4.0 | 0.8 | 50 |
| CCS-18.0 | 19.1 | 6.0 | 0.9 | 50 |
| CCS-24.0 | 25.4 | 8.0 | 1.0 | 50 |
| CCS-39.0 | 39.0 | 13.0 | 1.25 | 50 |
| Model number | Inner diameter (φ) | Volume 1 | 6,000m |
| CCS-1.5 | 1.6 | 200m | 17 |
| CCS-3.0 | 3.2 | 200m | twenty one |
| Model number | Inner diameter (φ) | Volume 1 | 4,000m |
| CCS-4.5 | 4.8 | 100m | 30 |
| CCS-6.0 | 6.4 | 100m | 39 |
| CCS-9.0 | 9.5 | 100m | 61 |
| Model number | Inner diameter (φ) | Volume 1 | 2,500m |
| CCS-12.0 | 12.7 | 50m | 73 |
| CCS-18.0 | 19.1 | 50m | 125 |
| CCS-24.0 | 25.4 | 50m | 205 |
| CCS-39.0 | 39.0 | 50m | - |
This is a made-to-order product and will be sold in the lot indicated.
The delivery time is 2 to 3 months.
The delivery time is 2 to 3 months.
