High voltage multi-hole heat shrink cap [TSCM]

$0.00

Tax included. Shipping calculated at checkout.

在庫: あり

納期: About a month

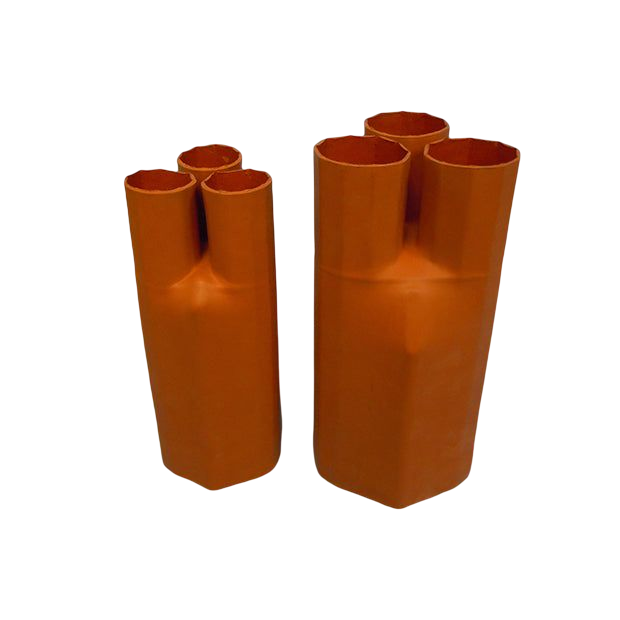

Pressure-resistant, multi-hole, 3-pole type heat-shrinkable cap

■Features

-Excellent electronic insulation, anti-tracking, UV resistance, weather resistance and flame retardancy.

- It can be used safely to protect cables up to 36KV between power switchgear and voltage boxes from flashover and electrical induction.

■Sales

・This product is made to order.

Please contact us for the price of this product.

Material	Crosslinked Polyolefin
Shrinkage rate	2:1 to 3:1
Shrinkage Start Temperature	110℃
Operating temperature range	-55 to 105°C
Standard Color	Reddish brown

characteristics	Test Method	characteristic values
Tensile strength	ASTM D2671	＞8MPa
Growth rate	ASTM D2671	≥550%
After thermal degradation Tensile strength and elongation	ASTM D2571 120℃, 168 hours.	＞10MPa >450%
Dielectric strength	IEC243	≥20kV/mm
volume resistivity	IEC93	≥10 Ω13.cm
water absorption	ISO62/23℃, 14 days	≥1%
Tracking resistance	ASTM D2303	none

*The above data are typical values and not guaranteed values.

Model number	D Inner diameter (overall)		D1 Inner diameter (multi-hole part)		L Overall length	L1 Multi-hole length
	Before shrinkage	After shrinkage	Before shrinkage	After shrinkage
TSCM-3-6020	60	twenty four	twenty five	8	180	45
TSCM-3-8036	80	38	35	11	210	57
TSCM-3-11048	110	50	46	17.5	250	65
TSCM-3-12555	125	57	55	20	260	57
TSCM-3-14070	140	70	62	26	280	70

Unit: mm

Please contact us for the price of this product.
