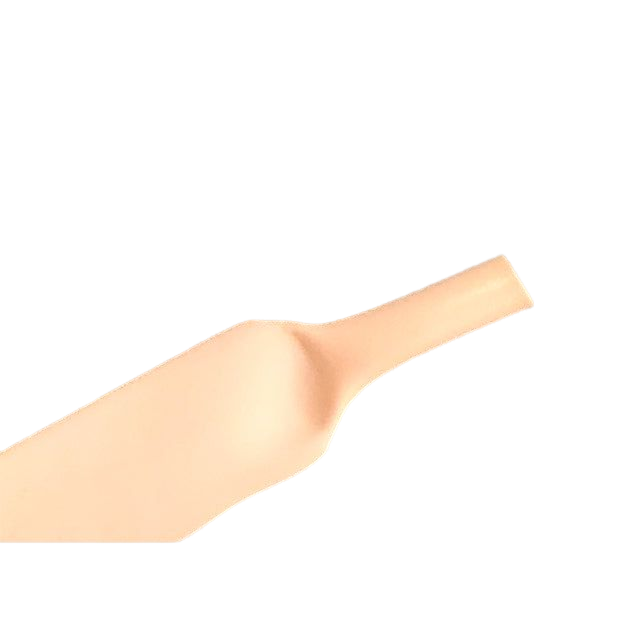

Thin-walled heat-shrinkable tubing [SZF3]
$891.00
$2,398.00
Tax included.
Shipping calculated at checkout.
在庫: あり
納期: 1～3日以内に出荷
- Barcode:
Thin-walled, highly flexible heat-shrinkable tubing
■Features
- This heat shrink tube is ideal for use in places where you need to shrink quickly or in narrow spaces.
- Because the shrinkage starting temperature is lower than SZF2, the product is less likely to be damaged when shrunk in areas that are sensitive to heat than with conventional heat shrink tubing .
◆Click here for the catalogue
| Material | Polyolefin |
| Shrinkage Start Temperature | 70℃ |
| Minimum Full Shrinkage Temperature | 100℃ |
| Operating temperature range | -55℃ to 125℃ |
| Shrinkage rate | 2:1 |
| Standard Color | Black White |
*Other colors are also available, so please contact us for details.
| characteristics | Test Method | characteristic values |
| Tensile strength | ASTM D 2671 | >14 MPa |
| Growth rate | ASTM D 2671 | >400% |
| Axial shrinkage | UL 224 | 0±5% |
| Tensile strength after thermal degradation | 158℃, 168 hrs. | >12 MPa |
| Elongation after heat degradation | >350% | |
| volume resistivity | ASTM D 2671 | >10 to the power of 14 Ω .cm |
| copper stability | UL 224 | Pass |
| copper corrosive | UL 224 | No corrosion |
| Model number | Before shrinkage | After shrinkage | Volume 1 | |
| D (inner diameter) | D1 (inner diameter) | T (thickness) | (m) | |
| SZF3-1.0-B | 1.0 | 0.5 | 0.2 | 200 |
| SZF3-1.5-B | 1.5 | 0.8 | ||
| SZF3-2.0-B | 2.0 | 1.0 | 0.24 | |
| SZF3-2.5-B | 2.5 | 1.3 | 0.25 | |
| SZF3-3.0-B | 3.0 | 1.5 | ||
| SZF3-3.5-B | 3.5 | 1.8 | ||
| SZF3-4.0-B | 4.0 | 2.0 | 0.26 | |
| SZF3-5.0-B | 5.0 | 2.5 | 0.31 | 100 |
| SZF3-6.0-B | 6.0 | 3.0 | ||
| SZF3-8.0-B | 8.0 | 4.0 | ||
| SZF3-10.0-B | 10.0 | 5.0 | ||
| SZF3-12.0-B | 12.0 | 6.0 | 50 | |
| SZF3-14.0-B | 14.0 | 7.0 | 0.33 | |
| SZF3-15.0-B | 15.0 | 7.5 | ||
| SZF3-16.0-B | 16 | 8 | 0.39 | |
| SZF3-20.0-B | 20 | 10 | ||
| SZF3-25.0-B | twenty five | 12.5 | 0.44 | |
| Model number | Inner diameter before shrinkage (φ) | List price | 9000m |
| SZF3-1.0-B | 1.0 | 35 | 13 |
| SZF3-1.5-B | 1.5 | 35 | 13 |
| Model number | Inner diameter before shrinkage (φ) | List price | 8000m |
| SZF3-2.0-B | 2.0 | 38 | 14 |
| SZF3-2.5-B | 2.5 | 38 | 14 |
| SZF3-3.0-B | 3.0 | 42 | 16 |
| Model number | Inner diameter before shrinkage (φ) | List price | 6000m |
| SZF3-3.5-B | 3.5 | 48 | 18 |
| SZF3-4.0-B | 4.0 | 51 | 19 |
| Model number | Inner diameter before shrinkage (φ) | List price | 5000m |
| SZF3-5.0-B | 5.0 | 62 | 26 |
| SZF3-6.0-B | 6.0 | 71 | 30 |
| Model number | Inner diameter before shrinkage (φ) | List price | 3000m |
| SZF3-8.0-B | 8.0 | 92 | 38 |
| SZF3-10.0-B | 10.0 | 101 | 42 |
| Model number | Inner diameter before shrinkage (φ) | List price | 2500m |
| SZF3-12.0-B | 12.0 | 117 | 49 |
| SZF3-14.0-B | 14.0 | 141 | 59 |
| Model number | Inner diameter before shrinkage (φ) | List price | 2000m |
| SZF3-15.0-B | 15.0 | 171 | 72 |
| SZF3-16.0-B | 16.0 | 194 | 81 |
| Model number | Inner diameter before shrinkage (φ) | List price | 1500m |
| SZF3-20.0-B | 20.0 | 332 | 105 |
| Model number | Inner diameter before shrinkage (φ) | List price | 1000m |
| SZF3-25.0-B | 25.0 | 332 | 138 |
All heat shrink tubing prices are per meter (excluding tax) ⇒How to read the price list
This heat shrink tubing is made to order and takes 2 to 3 months to deliver.
We will manufacture the specified lot quantity.
