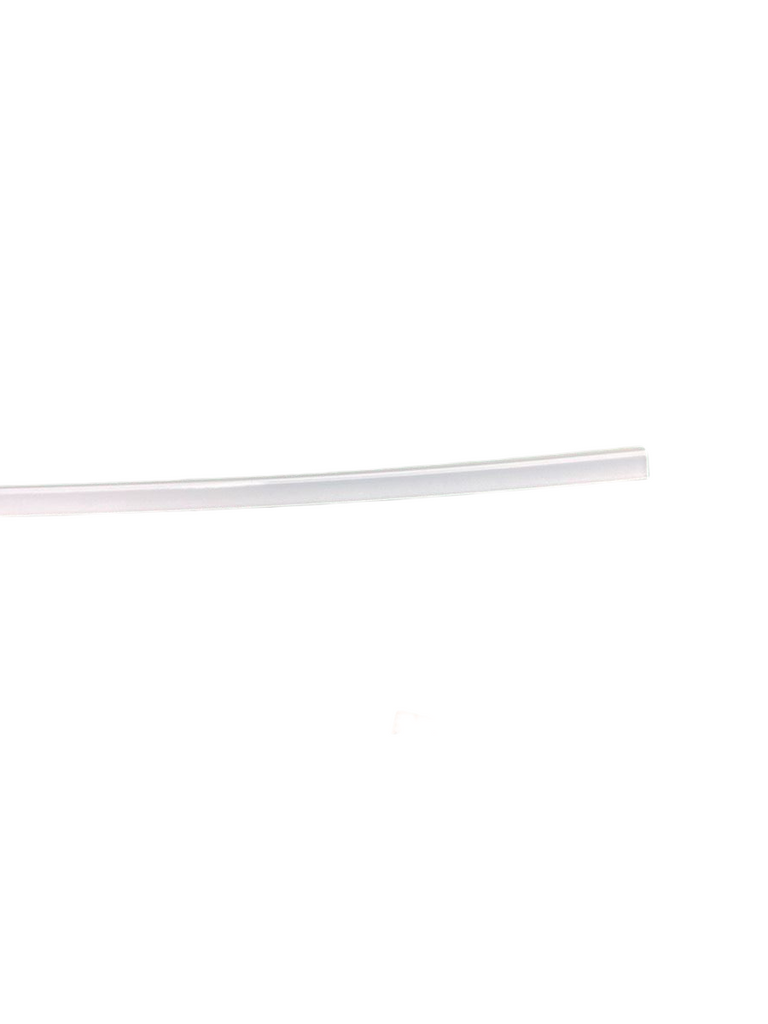

Edge Guard [DE]
Edge Guard [DE]

    Edge Guard [DE]

    $7.00
    Tax included. Shipping calculated at checkout.
    在庫: あり
    納期: 1～3日以内に出荷
    価格が0円と表示される製品のご購入は弊社までお問い合わせください。
    商品についてお問い合わせはこちら
    • Barcode:

    Product overview

    Edge protection item that does not require adhesive, ideal for straight sections

    ■Features
    - Responding to the trend towards thinner plates, it is also suitable for extremely thin plates up to 0.8mm thick .

    ・Edge protector compatible with a wide range of thicknesses.

    - Can be used for cutting sheet metal and panels.

    ・Just insert it and you can use it.

    ■ Recruitment history
    ・Machine tools, distribution boards, commercial facilities, etc.

    ■Sales
    ・This product can be purchased in quantities of 1m x 5 rolls.

    ■ Examples of made-to-order products
    -Can be cut to desired length.

    Download materials

    ◆Click here for the catalogue

    ◆ROHS2 certificate is here

    ◆Other non-containing certificates can be found here

    Specifications

    Material 6 nylon
    standard UL94 HB

    size

    エッジガード サイズ

    Model number Applicable panel thickness W W1 W2 T H
    DE-010 0.8 to 1.0 1.2 0.5 3.3 1 5
    DE-012 1.0 to 1.2 1.3 0.6 3.3 1 5
    DE-016 1.2 to 1.6 1.7 1 3.7 1 5
    DE-024 1.6 to 2.3 2.4 1.2 4.4 1 5
    DE-032 2.3 to 3.2 3.3 1.5 5.3 1 5

    Tolerance ±0.1mm Unit: mm

    Price List

    Model number Effective maximum width (mm) List price 5 bottles 10 pieces 50 bottles 100 bottles
    DE-010 1 180 177 170 116 108
    DE-012 1.2 150 147 141 96 90
    DE-016 1.6 163 160 153 104 98
    DE-024 2.3 173 170 163 111 104
    DE-032 3.2 200 196 188 128 120

    All prices are per piece (1m) (excluding tax) ⇒How to read the price list
    *Can be purchased in units of 5.
    *Price revision: March 31, 2011
