Shrinkage ratio 1/6, high shrinkage, waterproof heat shrink tubing with adhesive [CF]

Shrinkage ratio 1/6, high shrinkage, waterproof heat shrink tubing with adhesive [CF]

$25.00

Tax included. Shipping calculated at checkout.

在庫: あり

9/5時点　CF-1932/CF-3355/CF-4474は欠品中のため納期1か月程度となります。

納期: 1～3日以内に出荷

価格が0円と表示される製品のご購入は弊社までお問い合わせください。

商品についてお問い合わせはこちら

Barcode:

↓Select the thumbnail of the item you want to view and you will be taken to the respective data.

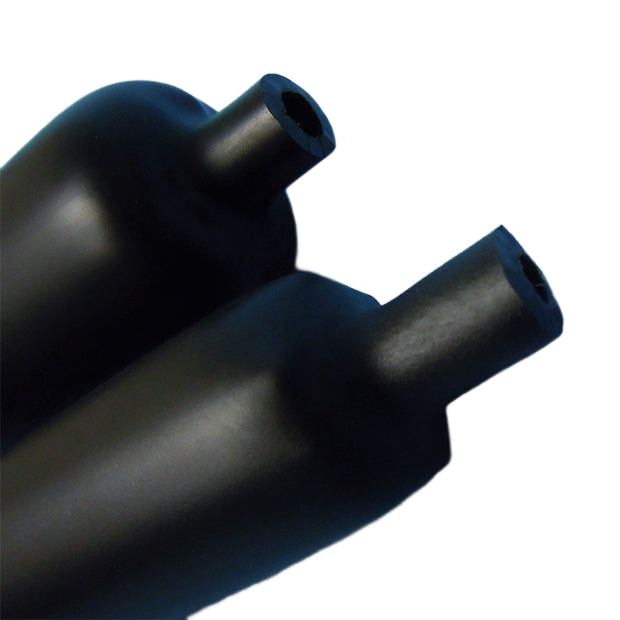

Heat-shrinkable tubing with adhesive that shrinks at a 6:1 ratio

■Features
- It shrinks at a ratio of 6:1, making it ideal for objects with steps.
-This heat shrink tubing has strong insulating properties and is highly waterproof because a hot melt adhesive is applied to the inside of the heat shrink tubing .
- It is widely used in marine cables and automatic control devices to protect metal wires from moisture and to bundle wires.
- Use in areas with steps in hoses or connectors that cannot be covered with other companies' waterproof tubes or high-shrink tubes.

■ Recruitment history
・Railway vehicle, automobile, connector manufacturers, etc.

Manufacturers	Situation before employment	Effects on recruitment
milling machine manufacturer	・From 2018 A manufacturer of large-diameter round connectors was facing the issue of waterproofing the crimped connectors. The connectors had an outer diameter of about 50 mm, while the cable had an outer diameter of about 10 mm. Even the high-shrink tubing from another manufacturer did not have an adequate shrink rate, so they were using two different types of tubing.	By adopting our CF tube, waterproofing can now be completed with just one CF tube. This cut the amount of tubing purchased in half and the heat shrinking work in half.

Material	Polyolefin
Minimum Full Shrinkage Temperature	120℃
Operating temperature range	-55℃ to 110℃
Shrinkage rate	6:1
Standard Color	black

characteristics	Test Method	characteristic values
Tensile strength	ASTM D 2671	>14MPa
Growth rate	ASTM D 2671	>400%
Axial shrinkage	UL 224	0 to -10%
density	ASTM D792	1.05g/cm3
Elongation after thermal degradation	ASTM D 2671	>300%
Tensile strength after thermal degradation	158℃ 168 hours	>12MPa >300%
Withstand voltage	IEC 243	≧18Kv/mm
Resistance value	IEC 93	>10 to the power of 13 Ω.cm
copper stability	ASTM D2671	Pass
Rot resistance	ISO 846	Pass

■Adhesive material properties

characteristics	Test Method	characteristic values
water absorption	ISO 62	<0.2%
Adhesive softening point	ASTM E28	85±5℃
Peel strength	DIN 30672	4 N/cm
Rot resistance	ISO 846	Passed

Model number	Before shrinkage (mm)	After shrinkage (mm)		Packaging unit (m)
Model number	D	D1	T1	1 bottle
CF-1932	19.0	3.2	3.2	1
CF-3355	33.0	5.5	3.4
CF-4474	44.4	7.4	3.6
CF-5183	50.8	8.3	4.7
CF-7012	69.8	11.7	4.7
CF-12023	119.4	22.9	4.7
CF-23540	235	40	4.7

Model number	Inner diameter before shrinkage (φ)	1 bottle	List price	1 bottle	5 bottles	10 pieces	50 bottles
CF-1932	19.5	1m	3,314	3,263	3,060	2,804	2,448
CF-3355	33.5	1m	4,263	4,197	3,935	3,607	3,149
CF-4474	44.4	1m	5,284	5,202	4,878	4,471	3,902
CF-5183	50.8	1m	inquiry
CF-7012	69.8	1m	inquiry

Shrinkage ratio 1/6, high shrinkage, waterproof heat shrink tubing with adhesive [CF]

↓Select the thumbnail of the item you want to view and you will be taken to the respective data.

Heat-shrinkable tubing with adhesive that shrinks at a 6:1 ratio

*Please contact us for more detailed information on case studies and results.
