1/4 Shrinkage Ratio, High Shrinkage, Waterproof Heat Shrink Tubing with Adhesive [CD]

1/4 Shrinkage Ratio, High Shrinkage, Waterproof Heat Shrink Tubing with Adhesive [CD]

$3.00

Tax included. Shipping calculated at checkout.

在庫: あり

As of August 8th, CD-6012-1/CD-24060-1 are out of stock and will take approximately one month to deliver.

納期: 1～3日以内に出荷

価格が0円と表示される製品のご購入は弊社までお問い合わせください。

商品についてお問い合わせはこちら

Barcode:

↓Select the thumbnail of the item you want to view and you will be taken to the respective data.

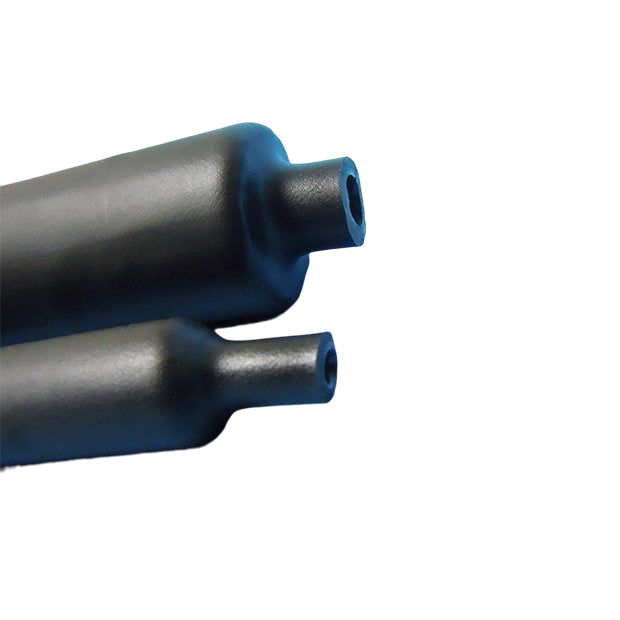

Heat-shrinkable tubing with adhesive that shrinks at a 4:1 ratio

■Features
- It shrinks at a 4:1 ratio, making it ideal for objects with steps .
- It has strong insulating properties and the hot melt adhesive applied to the inside of the heat shrink tubing makes it a highly water-resistant product .
- A heat shrinkable tube that is widely used in marine cables and automatic control devices for purposes such as protecting metal wires from moisture and bundling wires.
- This is a UL-certified product and can be purchased in small lots as a replacement for waterproof tubing or high-shrink tubing.

■ Recruitment history
・Railway vehicle, automobile, connector manufacturers, etc.

Manufacturers	Situation before employment	Effects on recruitment
Wire rope manufacturer	・From 2020 We were considering using weather-resistant, thick-walled tubes to improve the durability of wire ropes. Due to the impact of COVID-19, overseas manufacturers were taking more than six months to deliver.	Our CD tubes contain carbon black and are weather resistant. We also have them in stock in Japan and have a rapid delivery system, so they can be obtained in a short time.

Material	Polyolefin
standard	UL224 VW-1 UL No:E314714
Shrinkage Start Temperature	80℃
Minimum Full Shrinkage Temperature	110℃
Operating temperature range	-55℃ to 125℃
Shrinkage rate	4:1
Standard Color	black

characteristics	Test Method	characteristic values
Tensile strength	ASTM D 2671	>12MPa
Growth rate	ASTM D 2671	>400%
Axial shrinkage	UL224	0–10%
Eccentricity	ASTM D 2671	<40%
Elongation after thermal degradation	ASTM D 2671	>11MPa
Tensile strength after thermal degradation	158℃ 168 hours	>350%
low temperature flexibility	ASTM D2671 -30℃ 1 hour	No cracks
Flammability	UL224 VW-1	Passed
Dielectric strength	ASTM D 2671 AC2500V 60 seconds	No destruction
Dielectric strength	ASTM D 2671 AC2500V 60 seconds	No destruction
Resistance value	ASTM D 2671	>10 to the power of 14 Ω.cm
Copper Stability	UL224	Passed
copper corrosive	UL224	No corrosion

■Adhesive material properties

characteristics	Test Method	characteristic values
water absorption	ISO 62	<0.2%
Adhesive softening point	ASTM E28	85±5℃
Peel strength	DIN 30672	4 N/cm
Rot resistance	ISO 846	Passed

Model number	Before shrinkage (mm)	After shrinkage (mm)		Packaging unit (m)
Model number	Inner diameter D	Inner diameter D1	Thickness T1	1 bottle	reel
CD-4010	4.0	1	1.15	1	100
CD-6012	6.0	1.5	1.35		100
CD-8016	8.0	2.0	1.65		50
CD-12024	12.0	3.0	2.0		twenty five
CD-16040	16.0	4.0	2.0		-
CD-19044	18.0	4.45	2.4
CD-24060	24.0	6.0	2.5
CD-32080	32.0	8.0	2.85
CD-520130	52	13.0	2.9

*All stock sizes are 1m x 1 piece.

Model number	Inner diameter before shrinkage mm	List price	1 bottle	5 bottles	10 pieces	50 bottles	100 bottles
CD-4010	4.0	288	281	266	252	208	200
CD-6012	6.0	370	361	341	325	268	257
CD-8016	8.0	504	492	466	443	365	349
CD-12024	12.0	855	835	789	750	619	592
CD-16040	16.0	1,140	1,114	1,052	999	824	789
CD-19044	19.0	1,796	1,754	1,657	1,575	1,298	1,242
CD-24060	24.0	2,264	2,213	2,090	1,986	1,637	1,568
CD-32080	32.0	2,900	2,833	2,677	2,544	2,097	2,008
CD-520130	52.0	4,733	4,623	4,369	4,150	3,423	3,276

All heat shrink tubing prices are per tube (1m). (¥ excluding tax) ⇒ How to read the price list
*Price revision: March 31, 2011
